3 M³

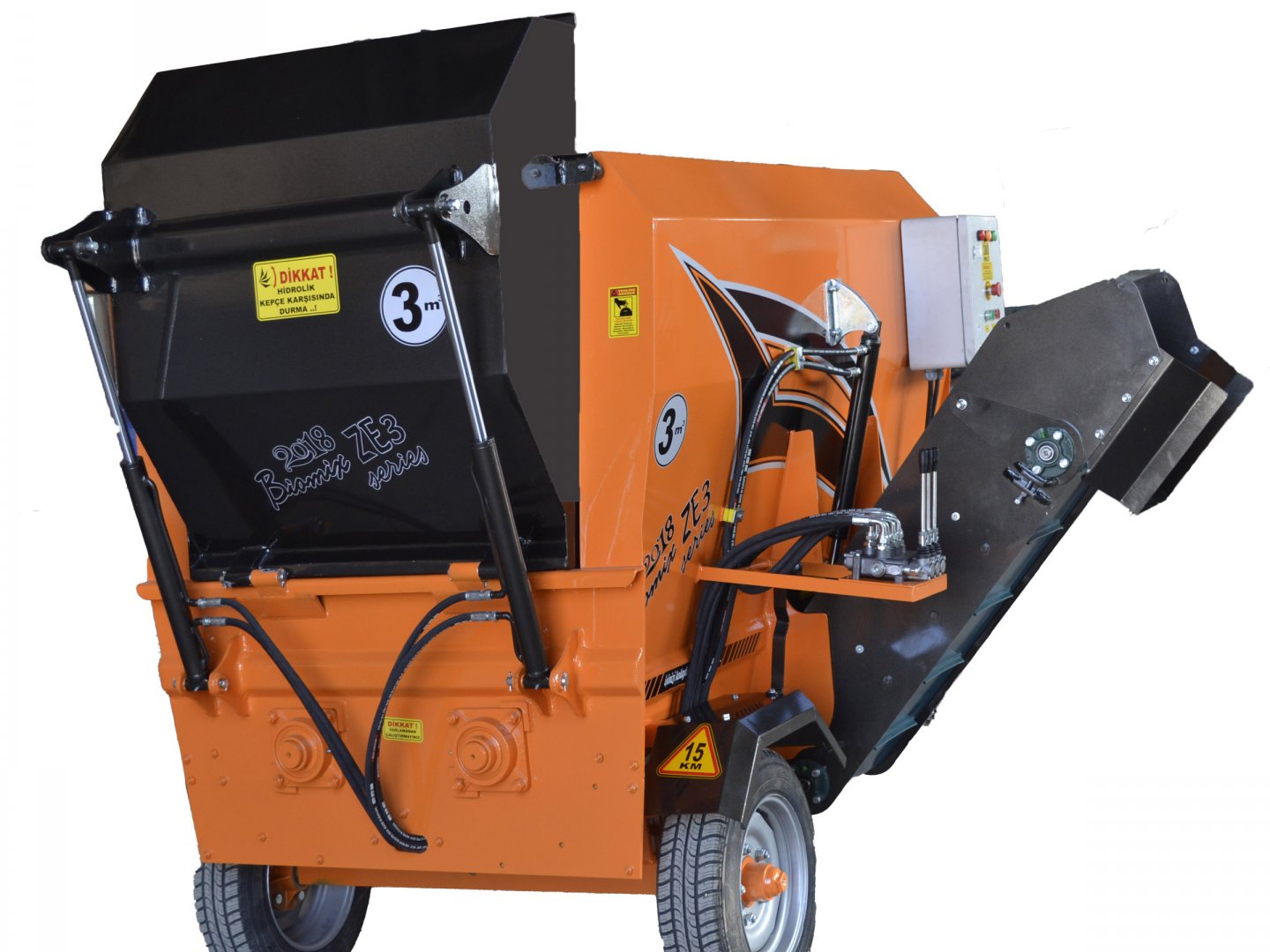

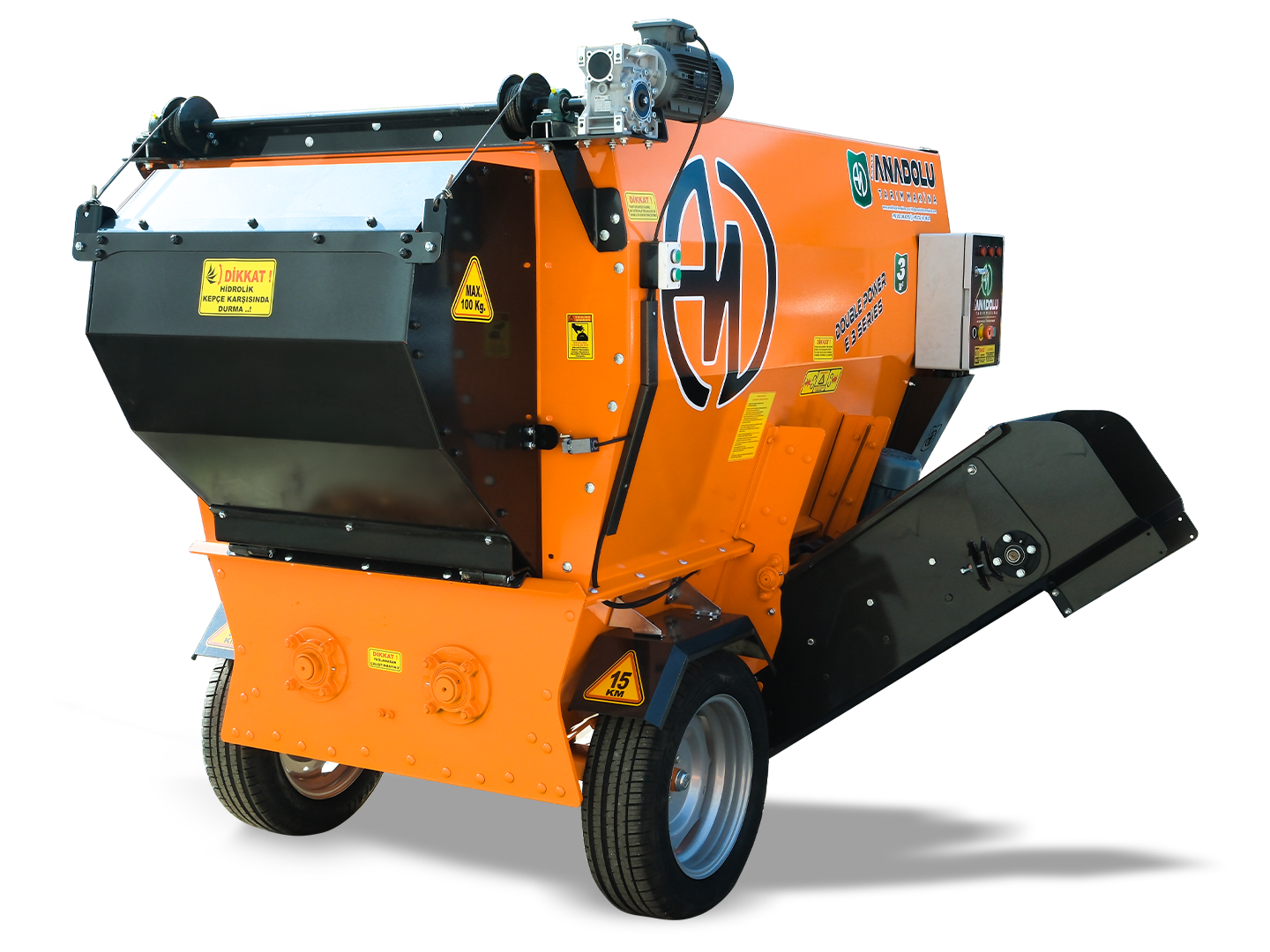

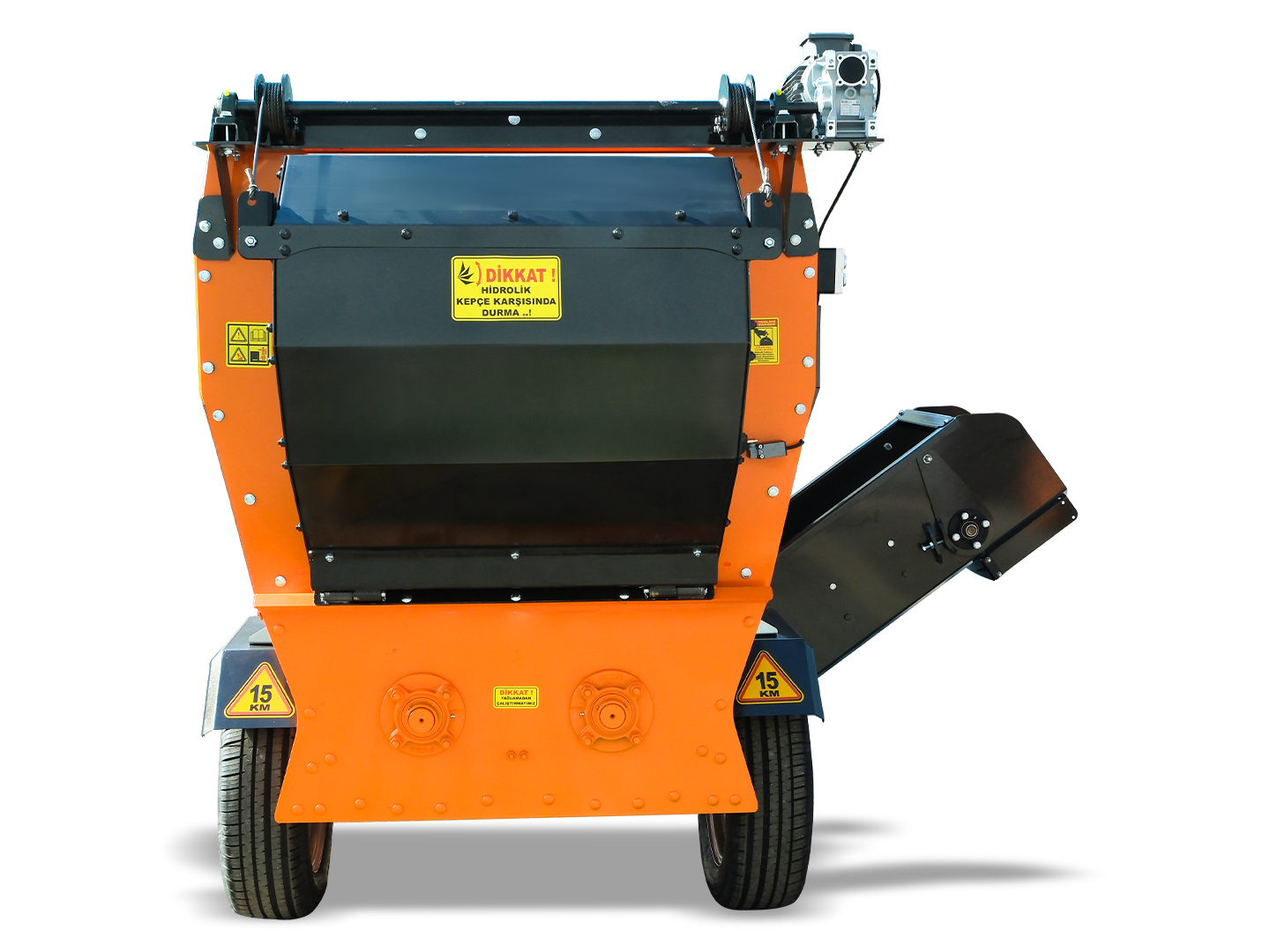

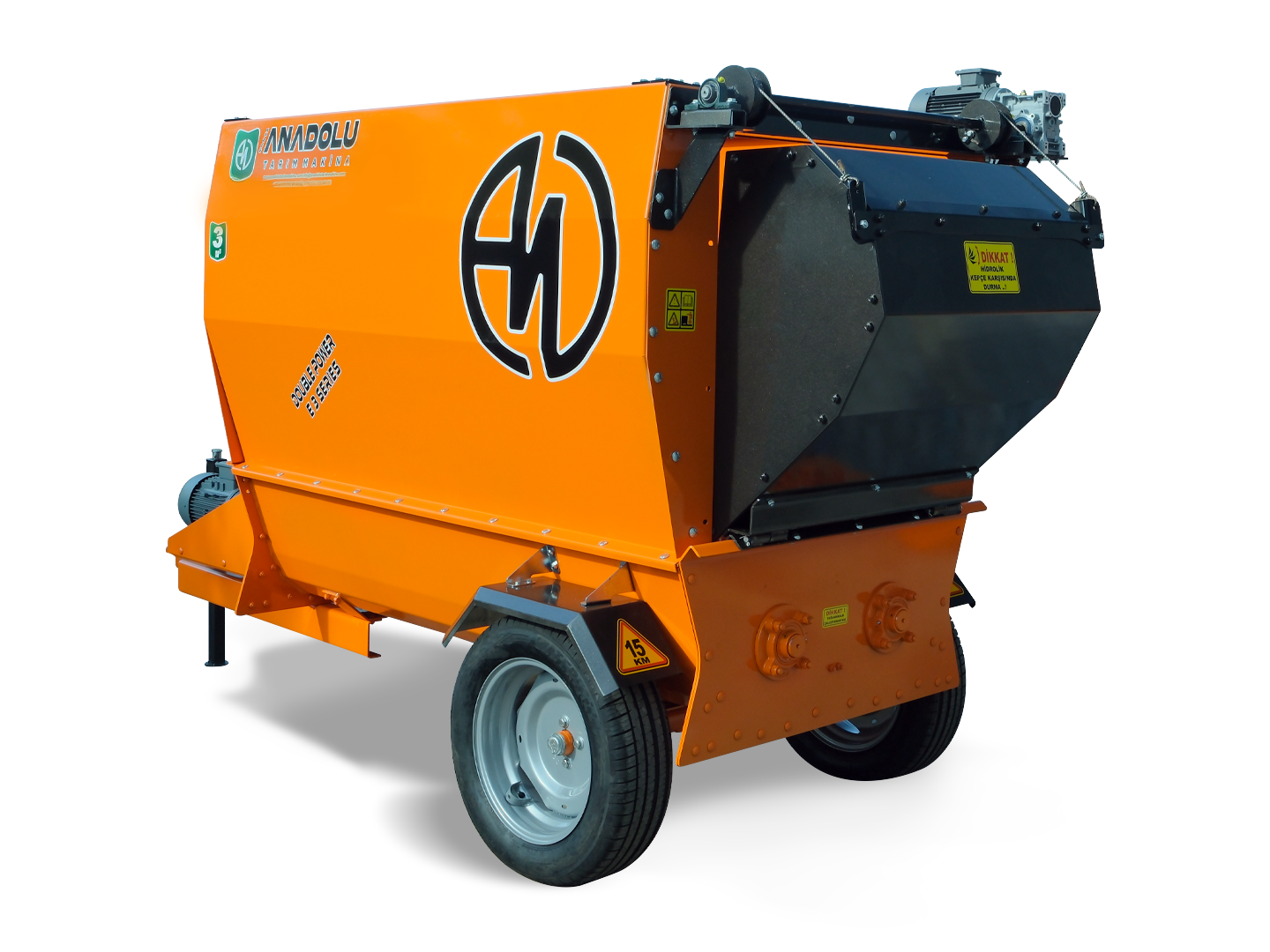

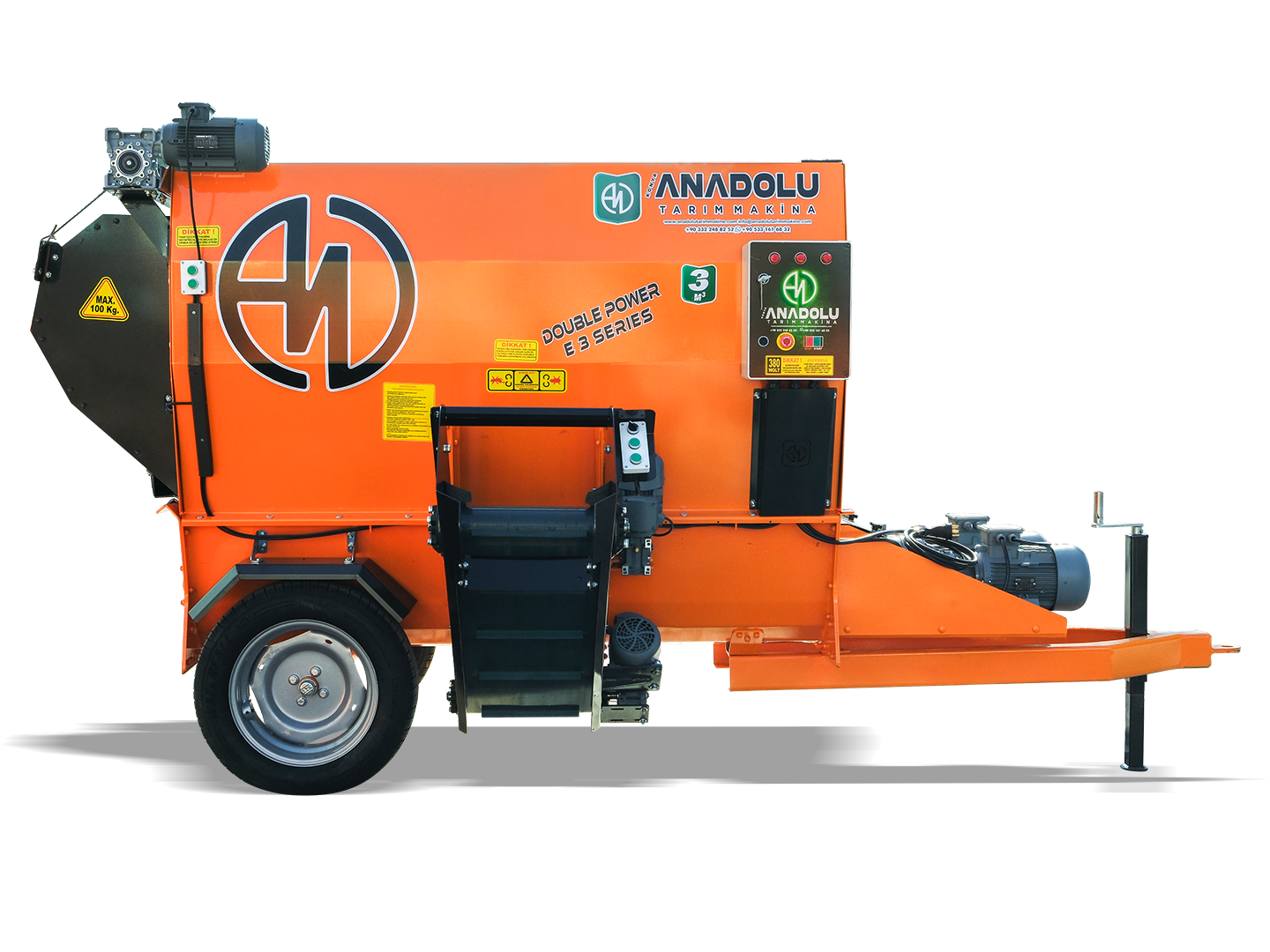

3 m³ horizontal feed mixer and distribution trailers have two horizontally designed augers
3 m³ horizontal feed mixer and distribution trailers have two horizontally designed augers. The auger system has been developed and developed with the latest technology and experience. With this designed helix system, you can increase the homogeneity to 95%, and at the same time, you can minimize the particle size thanks to the chopper blades made of special design and special materials. 3 m³ feed mixer and distribution trailer can prepare feed for 50 to 60 cattle and 100 to 110 small cattle. Horizontal feed mixer and distribution trailers can be produced in desired sizes and features with tractor, electric and electric / tractor depending on demand.
LENGTH (A) (mm) | 2560 mm |
HEIGHT (B) (mm) | 2130 mm |
WIDTH BAND (D) (mm) | 2210 mm |
CURRENT WEIGHT (KG) | 1100 kg |
POWER REQUIREMENT (KW) | 11 KW |
MOTION TRANSMISSION SYSTEM | SPROCKET |
SCREW SYSTEM | HORIZONTAL DOUBLE |
NUMBER OF BLADES | 48 |
WEIGHING SYSTEM | OPTIONAL |
FEED DISCHARGE DIRECTION | SINGLE FROM RIGHT |
BASE SHEET THICKNESS (mm) | 8 |
SIDE SHEET THICKNESS (mm) | 4 |
REAR LOADER BUCKET | OPTIONAL |
BAGGING SYSTEM | OPTIONAL |
HYDRAULIC DRAIN COVER | OPTIONAL |
DRAWING AND WHEEL SYSTEM | OPTIONAL |
