3,5 m³

Vertical feed mixer and distribution trailers have single or double augers positioned vertically.

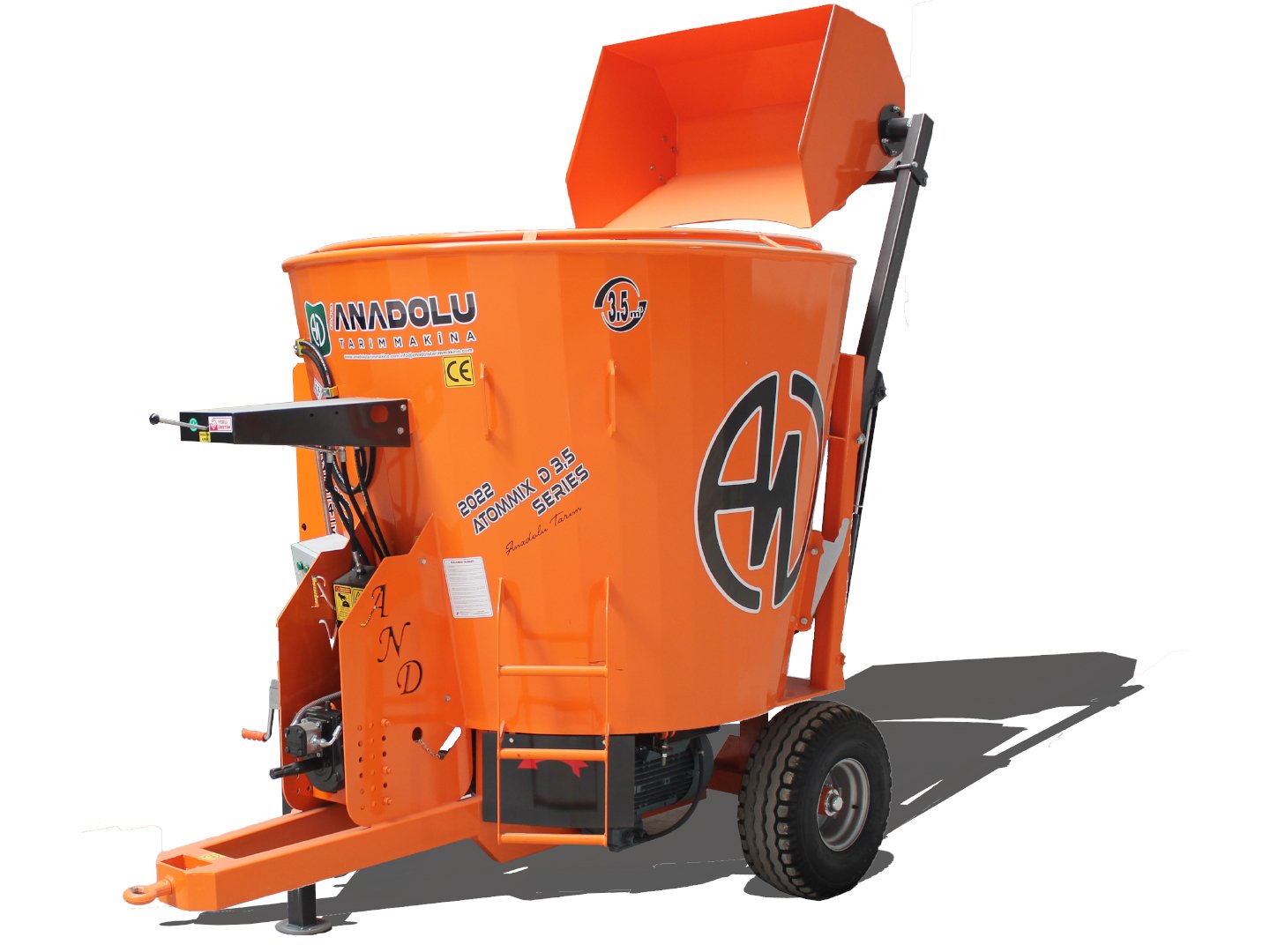

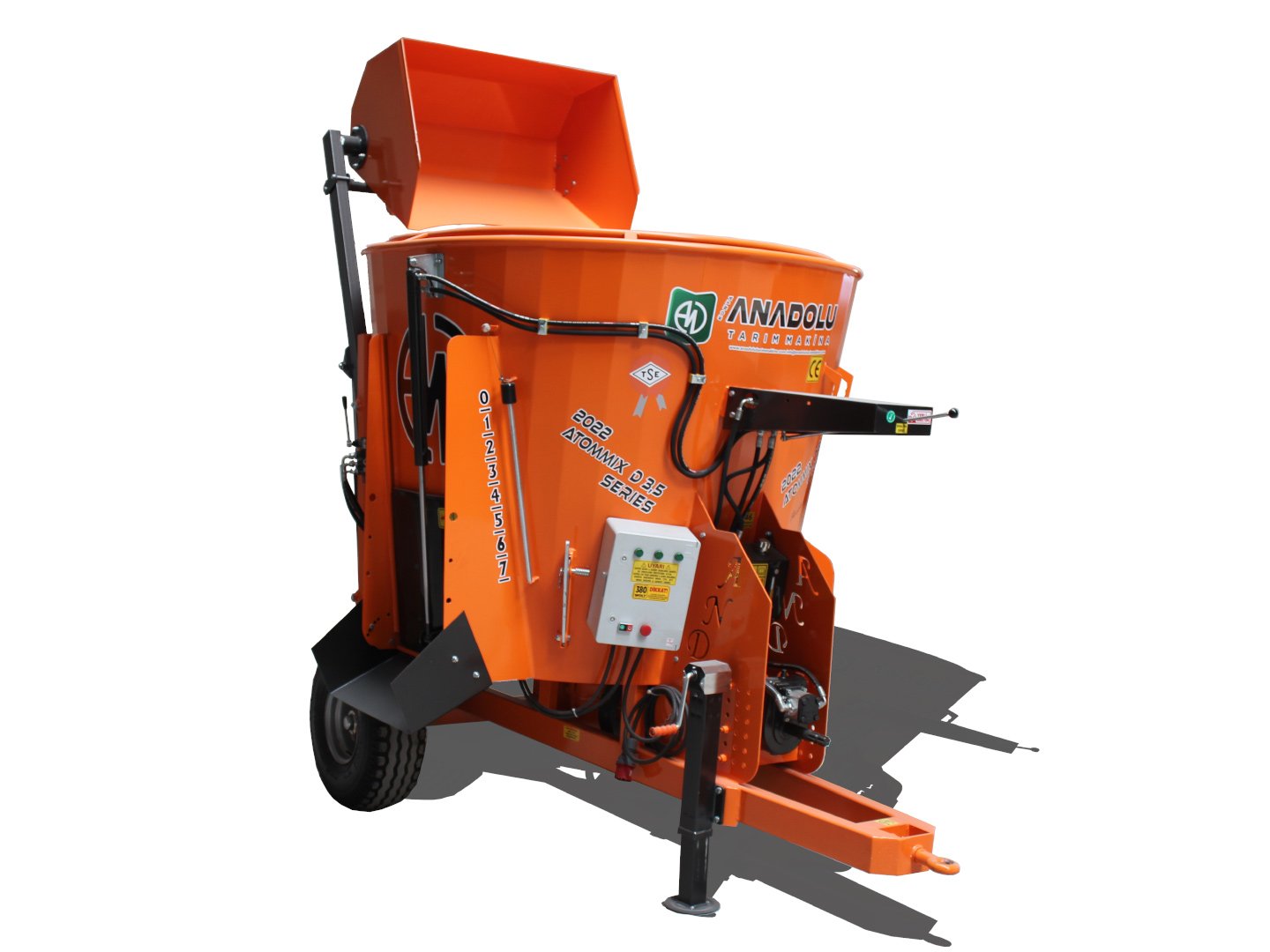

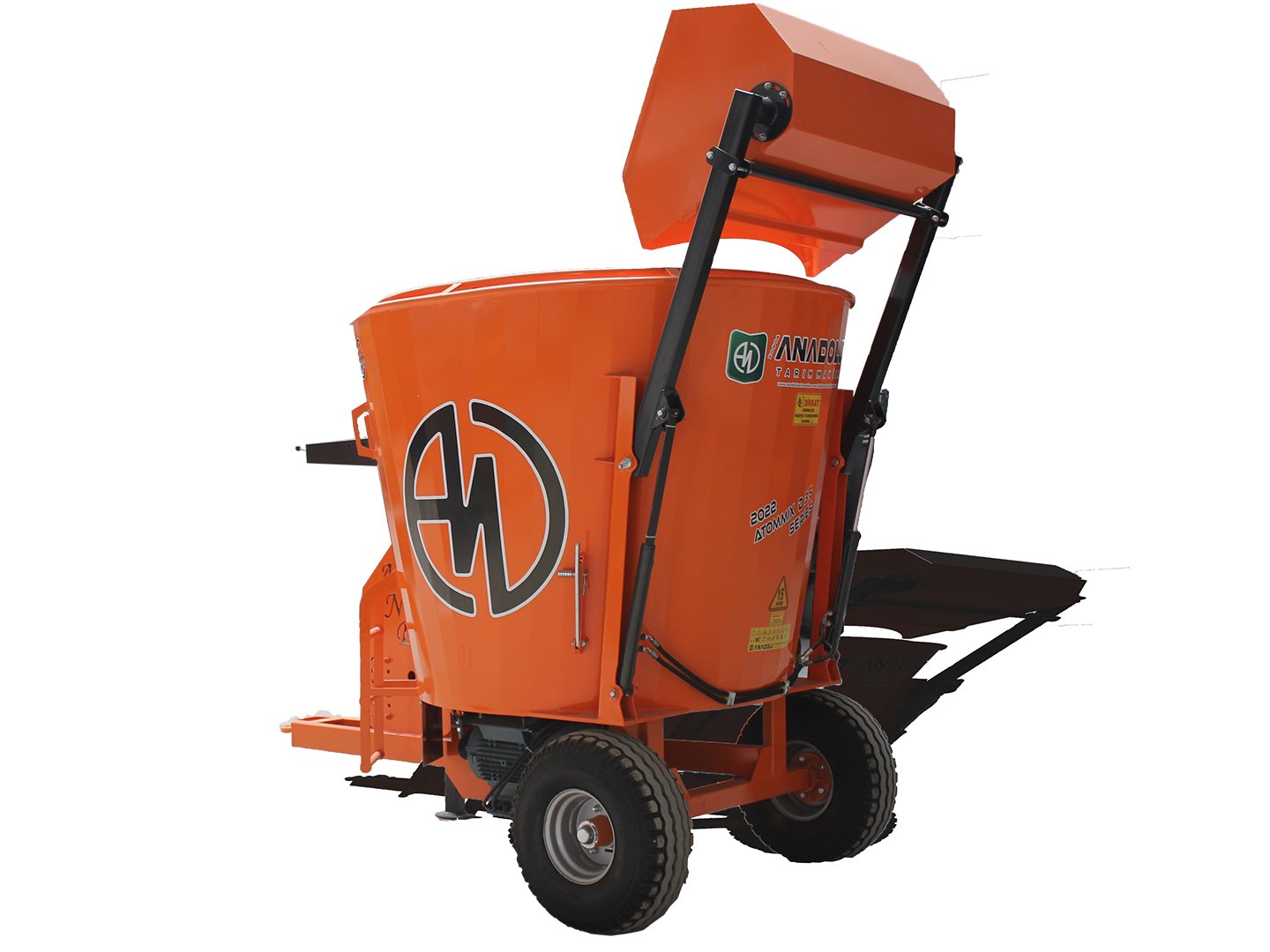

3,5 M³ VERTICAL FEED MIXER AND DISTRIBUTION TRAILER HAS SINGLE VERTICALLY DESIGNED AUDIO. WIRE SYSTEM IS DESIGNED WITH THE LATEST TECHNOLOGY AND EXPERIENCE, WITH THIS DESIGNED WIRE SYSTEM, IT CAN INCREASE THE HOMOGENEOUS LEVEL TO 95%, ALSO OUR SPECIAL DESIGN AND SPECIAL MATERIAL MATERIALS CAN BE PRODUCED FROM SPECIAL MATERIALS. 3.5 M³ FEED MIXED AND DISTRIBUTION TRAILER CAN PREPARE FEED FOR 65 AND 70 CAPITAL ANIMALS. VERTICAL FEEDING AND DISTRIBUTION TRAILER CAN BE PRODUCED WITH TRACTOR, ELECTRIC AND ELECTRIC / TRACTOR DEPENDING ON DESIRED SIZE AND FEATURES.

CAPACITY (m³) 3,5
MOTION TRANSMISSION SYSTEM TRANSMISSION
POWER REQUIRED 15 kw
POWER SOURCE ELECTRIC AND TRACTOR
LENGTH (A)(mm) 3100
BUCKET LENGTH 4100
HEIGHT (B) (mm) 2400
HEIGHT WITH BUCKET (B1) (mm) 3250
BANDED WIDTH (D) (mm) 2750
BANDLESS WIDTH (D1) (mm) 2150
WHEEL TRACK WIDTH (D2) (mm) 2000
CURRENT WEIGHT (KG) 1400
POWER REQUIREMENT (PTO) 40 hp
PTO SPEED 540 rpm
WHEEL DIMENSIONS 10,00/80-12
NUMBER OF BLADES 8 pieces
SCREW SYSTEM VERTICAL SINGLE
WEIGHING SYSTEM OPTIONAL
FEED DISCHARGE DIRECTION SINGLE RIGHT
TRACTOR SEPARATOR SYSTEM MANUAL JACK
REAR LOADER BUCKET THERE IS
TRANSMISSION PTO OUTPUTS SINGLE
BASE SHEET THICKNESS (mm) 14
SIDE SHEET THICKNESS (mm) 4
BAND SYSTEM Gutter System
DISCHARGE TAPE OPTIONAL
HYDRAULIC DRAIN COVER THERE IS
DRAWING AND WHEEL SYSTEM THERE IS
NUMBER OF ANIMALS 70
