16 m³

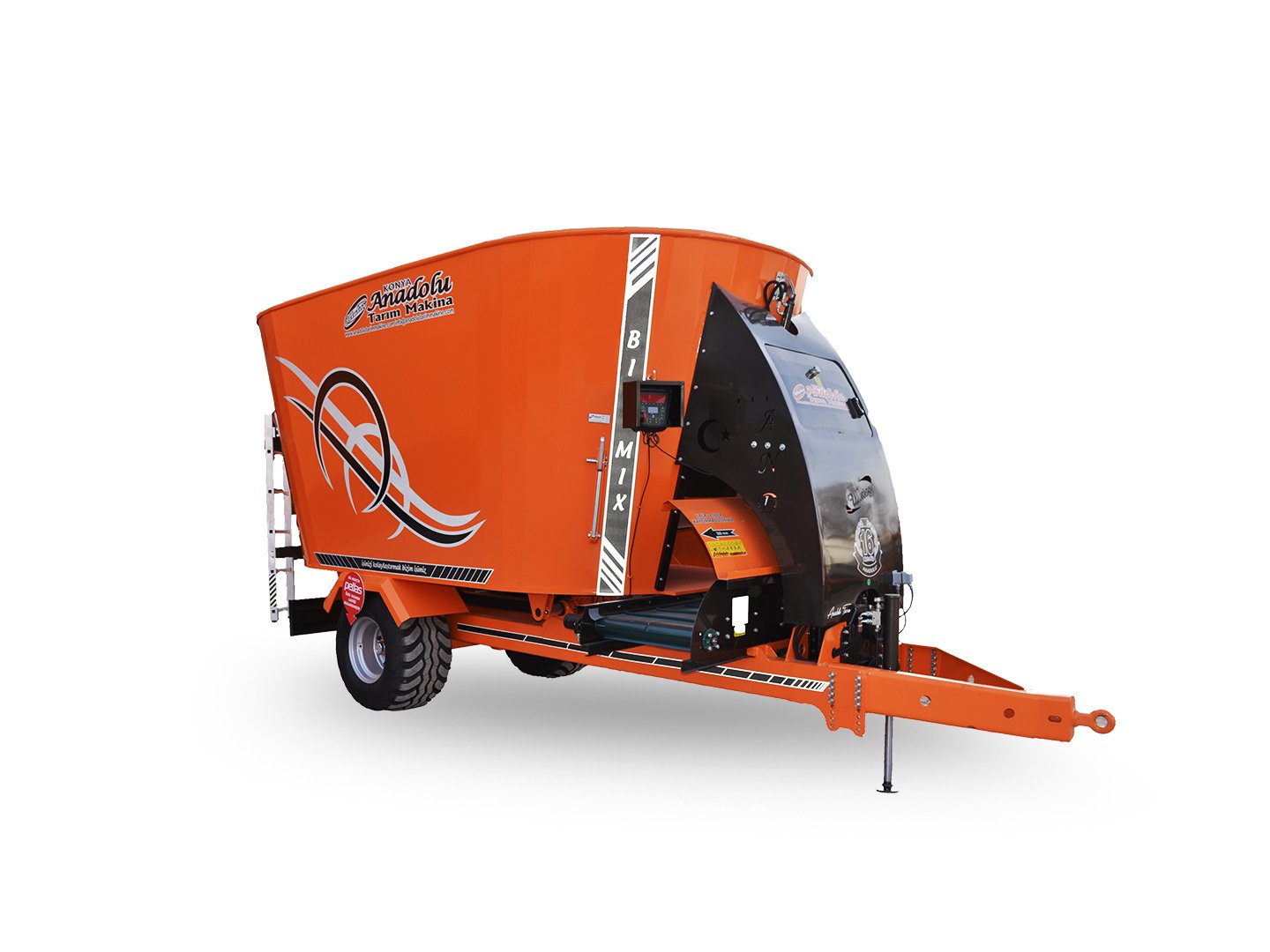

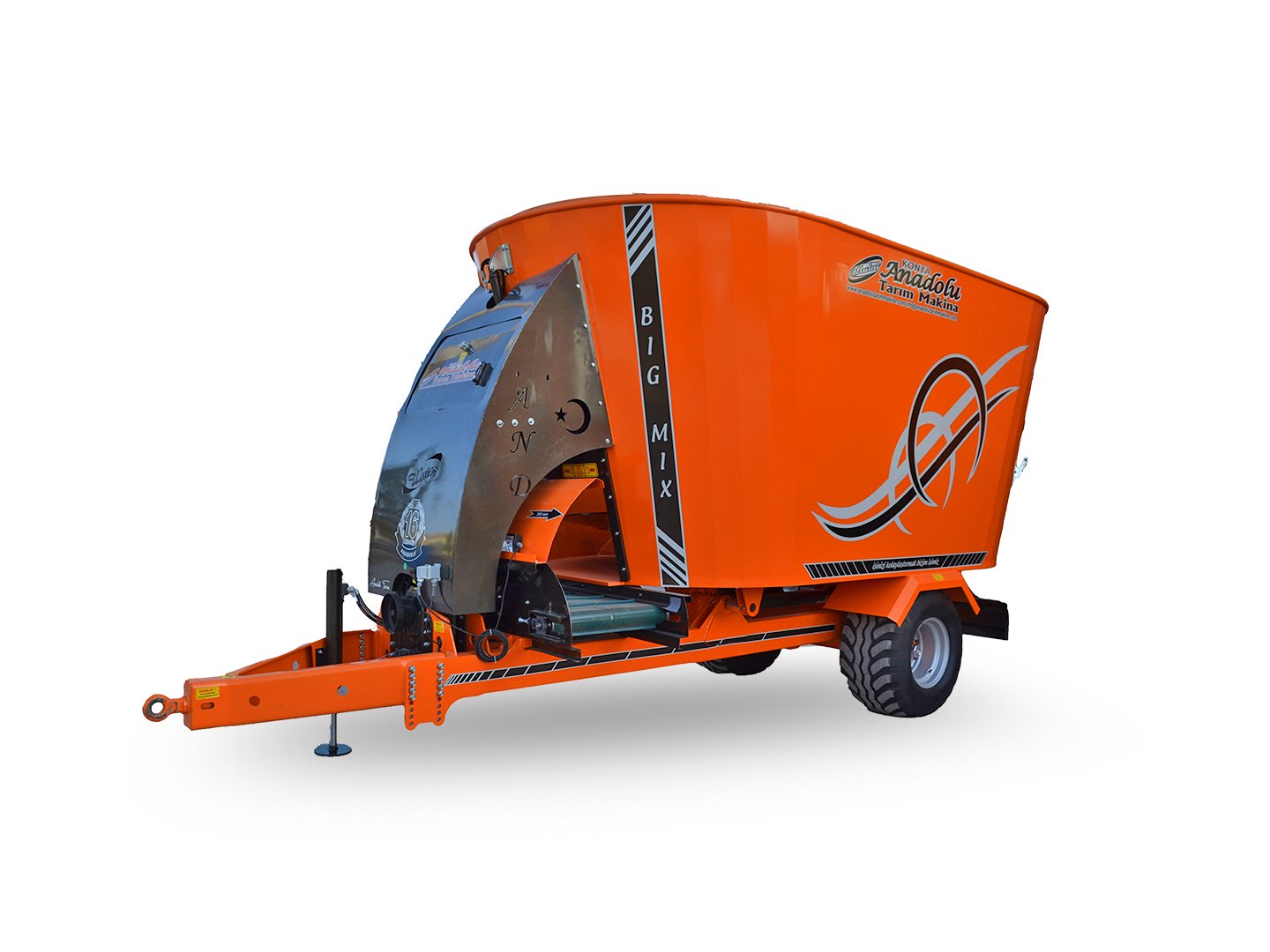

Vertical feed mixer and distribution trailers have single or double augers positioned vertically.
16 M³ VERTICAL FEED MIXER AND DISTRIBUTION TRAILER HAS A VERTICALLY DESIGNED DOUBLE AUDIO. WIRE SYSTEM IS DESIGNED WITH THE LATEST TECHNOLOGY AND EXPERIENCE, WITH THIS DESIGNED WIRE SYSTEM, IT CAN INCREASE THE HOMOGENEOUS LEVEL TO 95%, ALSO OUR SPECIAL DESIGN AND SPECIAL MATERIAL MATERIALS CAN BE PRODUCED FROM SPECIAL MATERIALS. 16 M³ FEED MIXED AND DISTRIBUTION TRAILER CAN PREPARE FEED FOR 320 AND 330 CAPITAL ANIMALS. VERTICAL FEEDING AND DISTRIBUTION TRAILER CAN BE PRODUCED WITH TRACTOR, ELECTRIC AND ELECTRIC / TRACTOR DEPENDING ON DESIRED SIZE AND FEATURES.
| CAPACITY (m³) | 16 |
| MOTION TRANSMISSION SYSTEM | TRANSMISSION |
| POWER REQUIRED | 55 kw |
| POWER SOURCE | ELECTRIC AND TRACTOR |
| LENGTH (A)(mm) | 3000 |
| BUCKET LENGTH | 6000 |
| HEIGHT (B) (mm) | 3000 |
| HEIGHT WITH BUCKET (B1) (mm) | - |
| BANDED WIDTH (D) (mm) | 2500 |
| BANDED WIDTH (D) (mm) | 2500 |
| WHEEL TRACK WIDTH (D2) (mm) | 2200 |
| CURRENT WEIGHT (KG) | 5050 |
| POWER REQUIREMENT (PTO | 110 hp |
| PTO SPEED | 540 rpm |
| WHEEL DIMENSIONS | - |
| NUMBER OF BLADES | 18 pieces |
| SCREW SYSTEM | VERTICAL DOUBLE |
| WEIGHING SYSTEM | OPTIONAL |
| TRACTOR SEPARATOR SYSTEM | HYDRAULIC JACK |
| REAR LOADER BUCKET | THERE IS |
| TRANSMISSION PTO OUTPUTS | SINGLE |
| BASE SHEET THICKNESS (mm) | 20 |
| SIDE SHEET THICKNESS (mm) | 6 |
| BAND SYSTEM | HYDRAULIC CONVEYOR |
| DISCHARGE TAPE | THERE IS |
| HYDRAULIC DRAIN COVER | THERE IS |
| DRAWING AND WHEEL SYSTEM | THERE IS |
| NUMBER OF ANIMALS | 340 |
