8 m³ Single Sided Discharge System
One-Sided Discharge System. Vertical feed mixer and distribution trailers have single or double augers positioned vertically.
8 M³

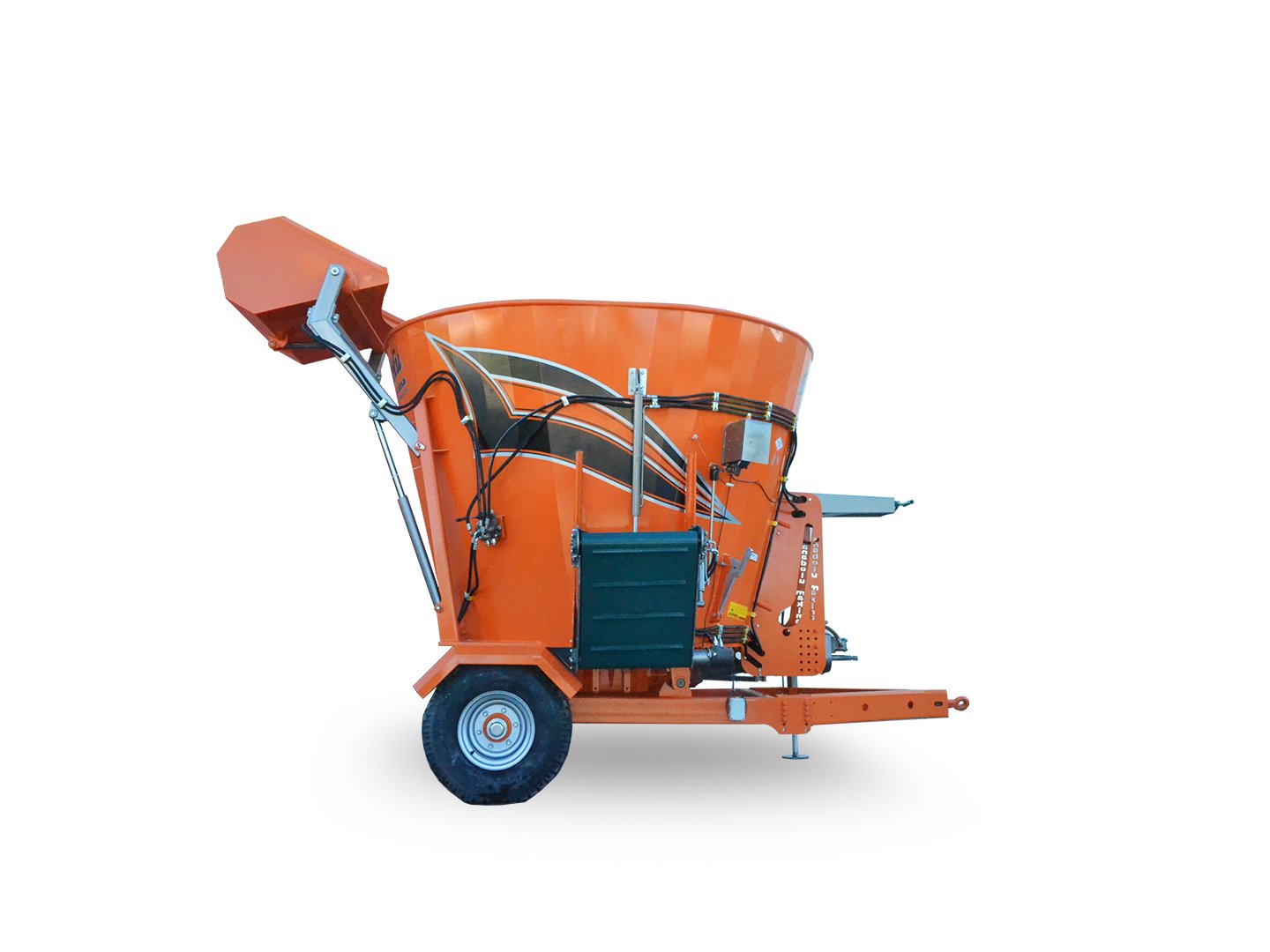

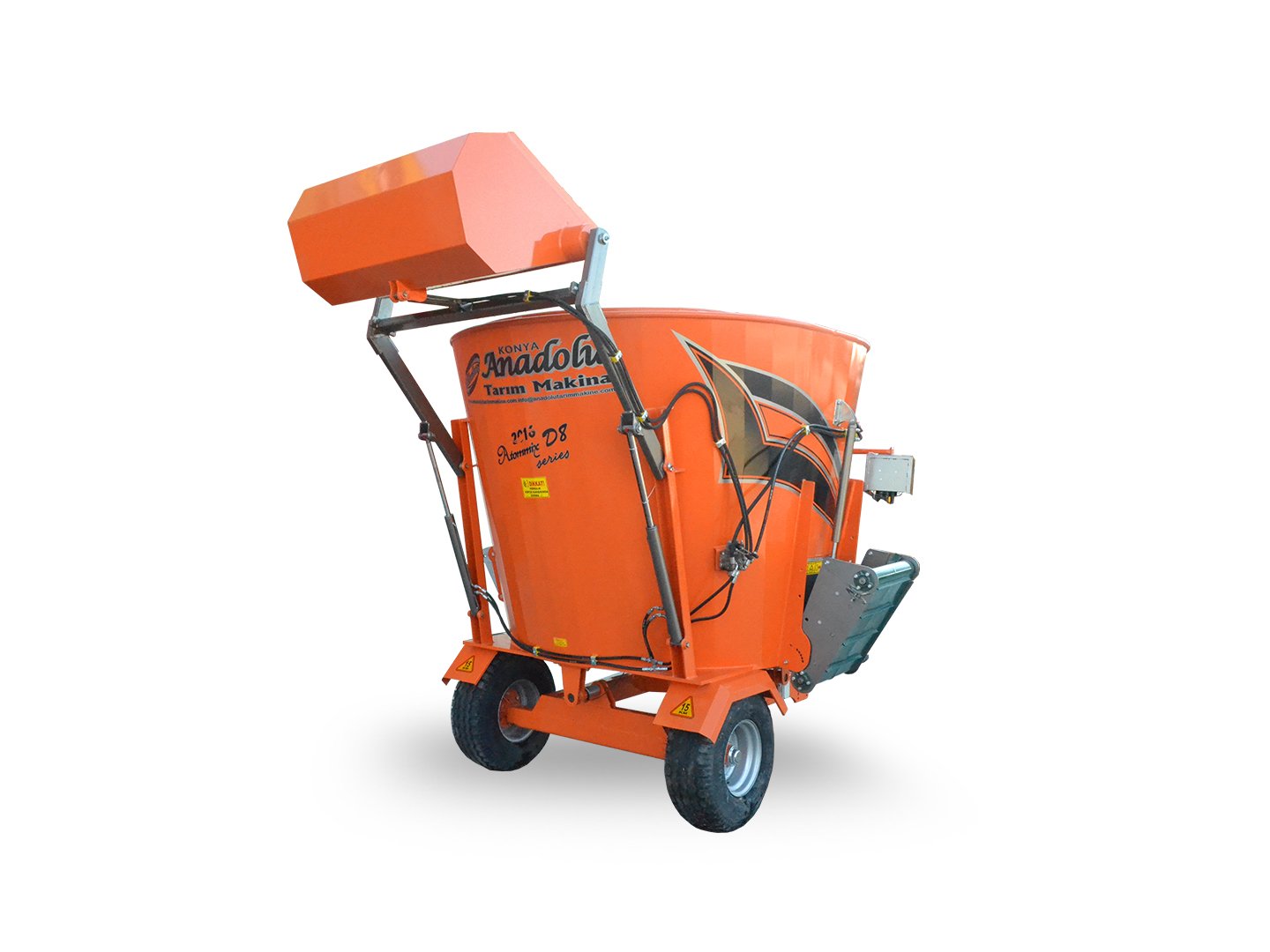

8 M³ VERTICAL FEED MIXER AND DISTRIBUTION TRAILER HAS SINGLE VERTICALLY DESIGNED AUDIO. WIRE SYSTEM IS DESIGNED WITH THE LATEST TECHNOLOGY AND EXPERIENCE, WITH THIS DESIGNED WIRE SYSTEM, IT CAN INCREASE THE HOMOGENEOUS LEVEL TO 95%, ALSO OUR SPECIAL DESIGN AND SPECIAL MATERIAL MATERIALS CAN BE PRODUCED FROM SPECIAL MATERIALS. 8 M³ FEED MIXED AND DISTRIBUTION TRAILER CAN PREPARE FEED FOR 140 AND 150 CAPITAL ANIMALS. VERTICAL FEEDING AND DISTRIBUTION TRAILER CAN BE PRODUCED WITH TRACTOR, ELECTRIC AND ELECTRIC / TRACTOR DEPENDING ON DESIRED SIZE AND FEATURES.
| BAND SYSTEM | HYDRAULIC CONVEYOR |
| POWER REQUIRED | 22 kw |
| POWER SOURCE | TRACTOR |
| BASE SHEET THICKNESS (mm) | 20 |
| BUCKET LENGTH | 5150 |
| HEIGHT (B) (mm) | 2800 |
| HEIGHT WITH BUCKET (B1) (mm) | 4100 |
| BANDED WIDTH (D) (mm) | 2450 |
| BANDLESS WIDTH (D1) (mm) | 2300 |
| WHEEL TRACK WIDTH (D2) (mm) | 2100 |
| CURRENT WEIGHT (KG) | 2670 |
| POWER REQUIREMENT (PTO) | 70 hp |
| PTO SPEED | 540 rpm |
| TRANSMISSION PTO OUTPUTS | SINGLE |
| SCREW SYSTEM | VERTICAL SINGLE |
| WEIGHING SYSTEM | OPTIONAL |
| FEED DISCHARGE DIRECTION | SINGLE RIGHT |
| TRACTOR SEPARATOR SYSTEM | HYDRAULIC JACK |
| REAR LOADER BUCKET | THERE IS |
| SIDE SHEET THICKNESS (mm) | 6 |
| DISCHARGE TAPE | THERE IS |
| HYDRAULIC DRAIN COVER | THERE IS |
| FULL HYDRAULIC SYSTEM | THERE IS |
| DRAWING AND WHEEL SYSTEM | THERE IS |
| NUMBER OF ANIMALS | 160 |
