2,5 m³
Vertical feed mixer and distribution trailers have single or double augers positioned vertically.

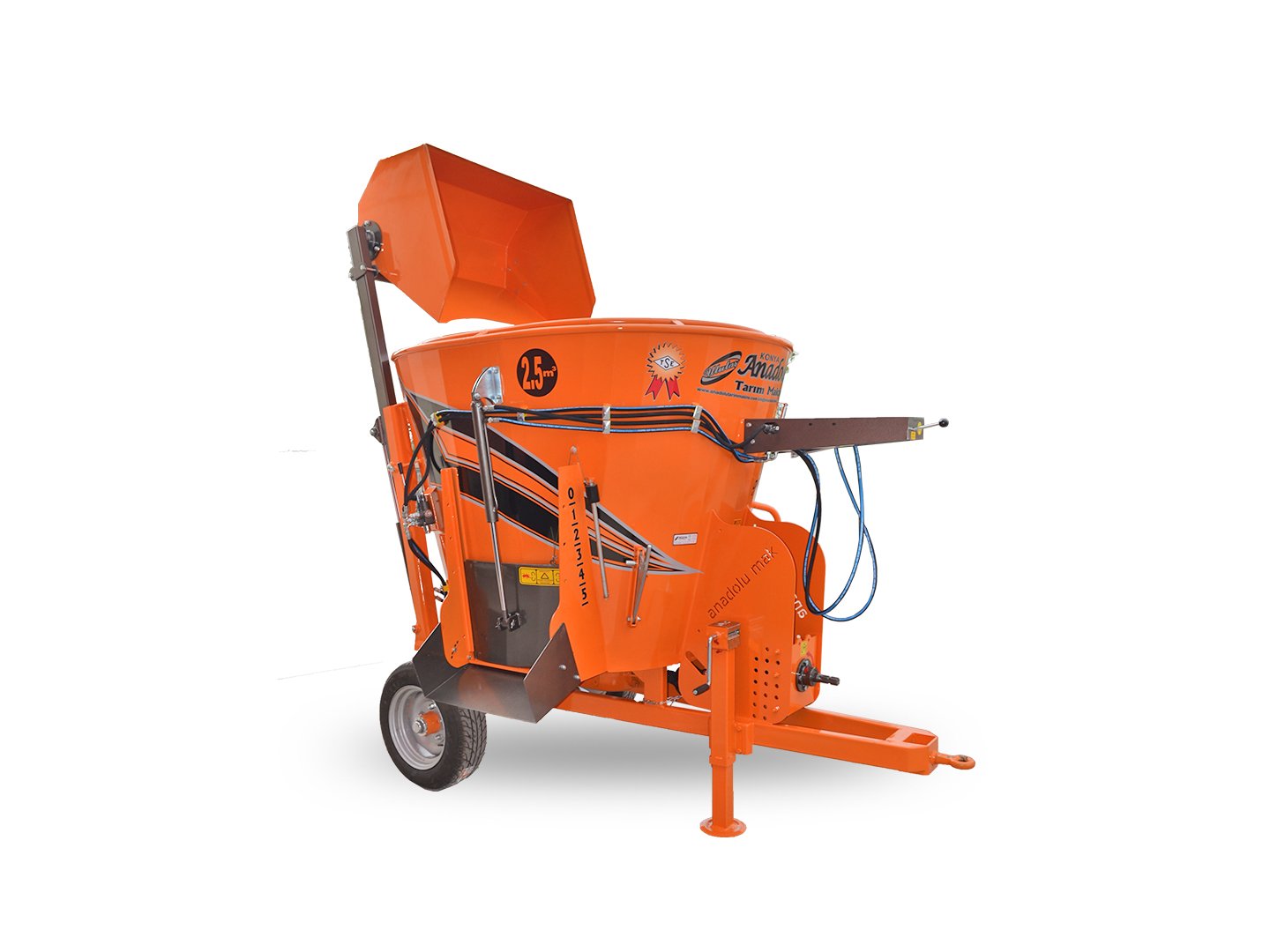

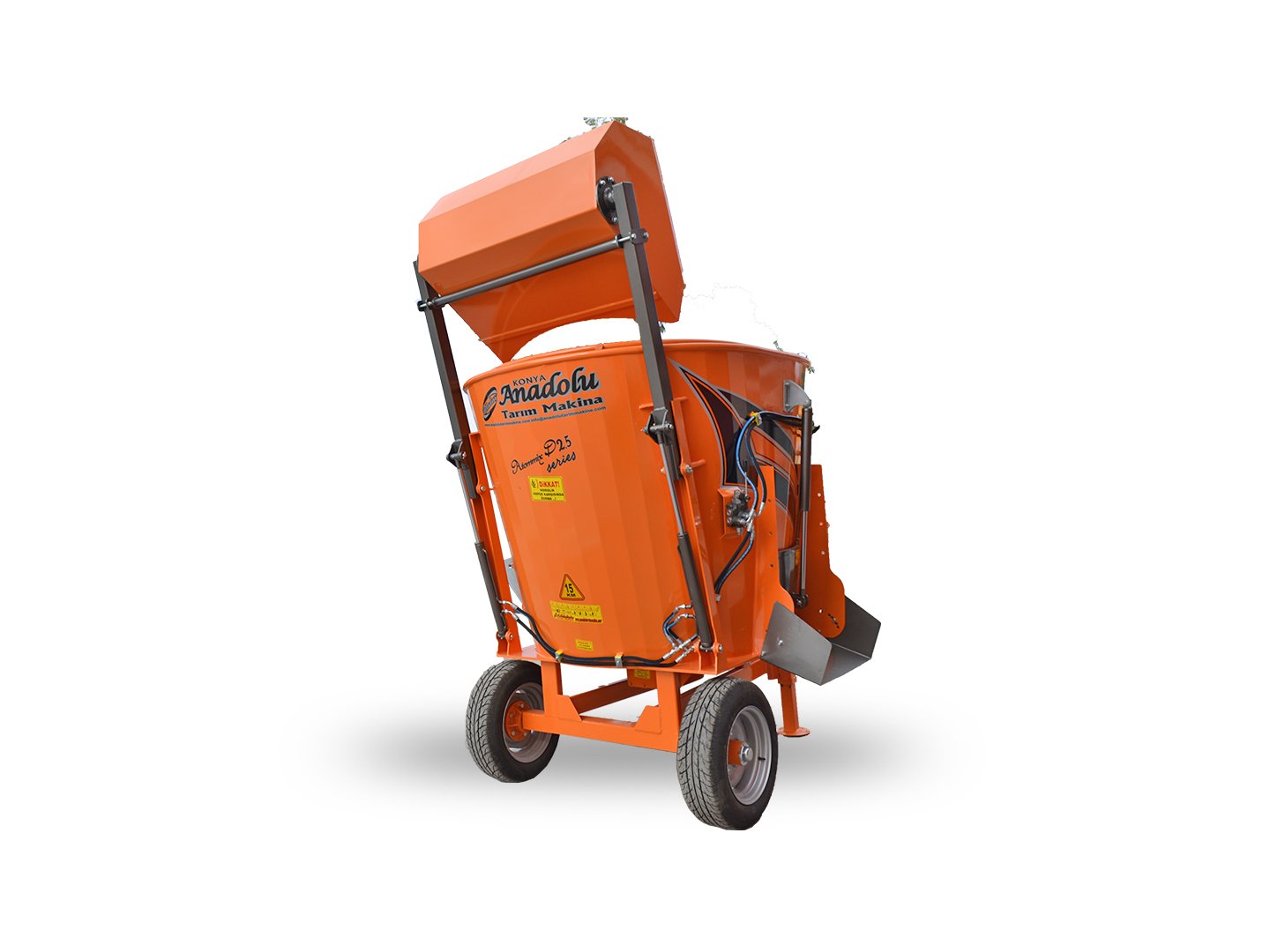

2,5 m³ VERTICAL FEED MIXER AND DISTRIBUTION TRAILER HAS SINGLE VERTICALLY DESIGNED AUDIO. WIRE SYSTEM IS DESIGNED WITH THE LATEST TECHNOLOGY AND EXPERIENCE, WITH THIS DESIGNED WIRE SYSTEM, IT CAN INCREASE THE HOMOGENEOUS LEVEL TO 95%, ALSO OUR SPECIAL DESIGN AND SPECIAL MATERIAL MATERIALS CAN BE PRODUCED FROM SPECIAL MATERIALS. 2.5 M³ FEED MIXED AND DISTRIBUTION TRAILER CAN PREPARE FEED FOR 40 TO 50 CAPITAL ANIMALS. VERTICAL FEEDING AND DISTRIBUTION TRAILERS CAN BE MANUFACTURED WITH A TRACTOR, ELECTRIC AND ELECTRIC / TRACTOR IN DESIRED SIZE AND FEATURES, ALSO, OUR 2.5 M³ MACHINES WITHOUT LOADING BUCKET OR WITHOUT LOADBACK.
| CAPACITY (m³) | 2,5 m³ |
| MOTION TRANSMISSION SYSTEM | TRANSMISSION |
| POWER REQUIRED | 11 KW |
| POWER SOURCE | ELECTRIC AND TRACTOR |
| LENGTH (A)(mm) | 2900 mm |
| BUCKET LENGTH | 3900 mm |
| HEIGHT (B) (mm) | 2150 mm |
| HEIGHT WITH BUCKET (B1) (mm) | 3150 mm |
| BANDED WIDTH (D) (mm) | 2500 mm |
| BANDLESS WIDTH (D1) (mm) | 1900 mm |
| WHEEL TRACK WIDTH (D2) (mm) | 1800 mm |
| CURRENT WEIGHT (KG) | 1200 kg |
| POWER REQUIREMENT (PTO) | 30 hp |
| PTO SPEED | 540 rpm |
| WHEEL DIMENSIONS | 195/65 |
| NUMBER OF BLADES | 6 pieces |
| SCREW SYSTEM | VERTICAL SINGLE |
| WEIGHING SYSTEM | OPTIONAL |
| FEED DISCHARGE DIRECTION | SINGLE RIGHT |
| TRACTOR SEPARATOR SYSTEM | MANUAL JACK |
| REAR LOADER BUCKET | THERE IS |
| TRANSMISSION PTO OUTPUTS | SINGLE |
| BASE SHEET THICKNESS (mm) | 12 |
| SIDE SHEET THICKNESS (mm) | 3 |
| BAND SYSTEM | Gutter System |
| DISCHARGE TAPE | OPTIONAL |
| HYDRAULIC DRAIN COVER | THERE IS |
| NUMBER OF ANIMALS | 50 |
