12 m³

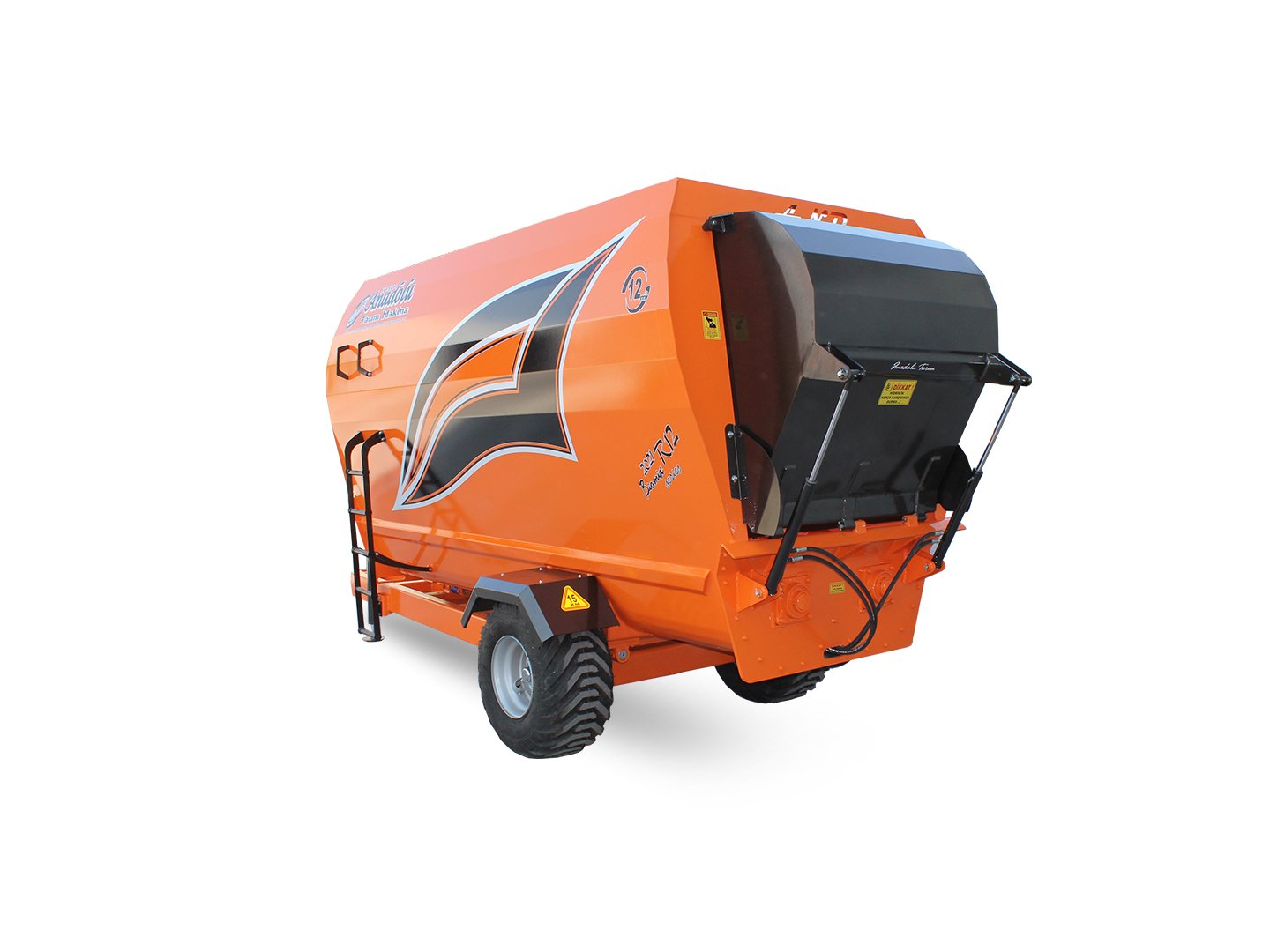

12 m³ horizontal feed mixer and distribution trailers have two horizontally designed augers.

12 m³ horizontal feed mixer and distribution trailers have two horizontally designed augers. The auger system has been developed and developed with the latest technology and experience. With this designed helix system, you can increase the homogeneity to 95%, and at the same time, you can minimize the particle size thanks to the chopper blades made of special design and special materials. 12 m³ feed mixer and distribution trailer can prepare feed for 230 to 240 cattle and 900 to 1000 small cattle. Horizontal feed mixer and distribution trailers can be produced in desired sizes and features with tractor, electric and electric / tractor depending on demand.

POWER SOURCE TRACTOR
LENGTH (A) (mm) 6000
HEIGHT (B) (mm) 2700
BANDED WIDTH (D) (mm)
BANDLESS WIDTH (D1) (mm) 2650
WHEEL TRACK WIDTH (D2) (mm) -
CURRENT WEIGHT (KG) 4200
POWER REQUIREMENT (PTO) 85
PTO SPEED 540 D/dk
WHEEL DIMENSIONS -
NUMBER OF BLADES 88
SCREW SYSTEM HORIZONTAL DOUBLE
WEIGHING SYSTEM OPTIONAL
FEED DISCHARGE DIRECTION SINGLE RIGHT
TRACTOR SEPARATOR SYSTEM HYDRAULIC JACK
REAR LOADER BUCKET AVAILABLE
TRANSMISSION PTO OUTPUTS COUPLE
BASE SHEET THICKNESS (mm) 5
SIDE SHEET THICKNESS (mm) 10
BAND SYSTEM AVAILABLE
DISCHARGE TAPE AVAILABLE
FULL HYDRAULIC SYSTEM AVAILABLE
DRAWING AND WHEEL SYSTEM AVAILABLE
NUMBER OF ANIMA 220
