6 m³

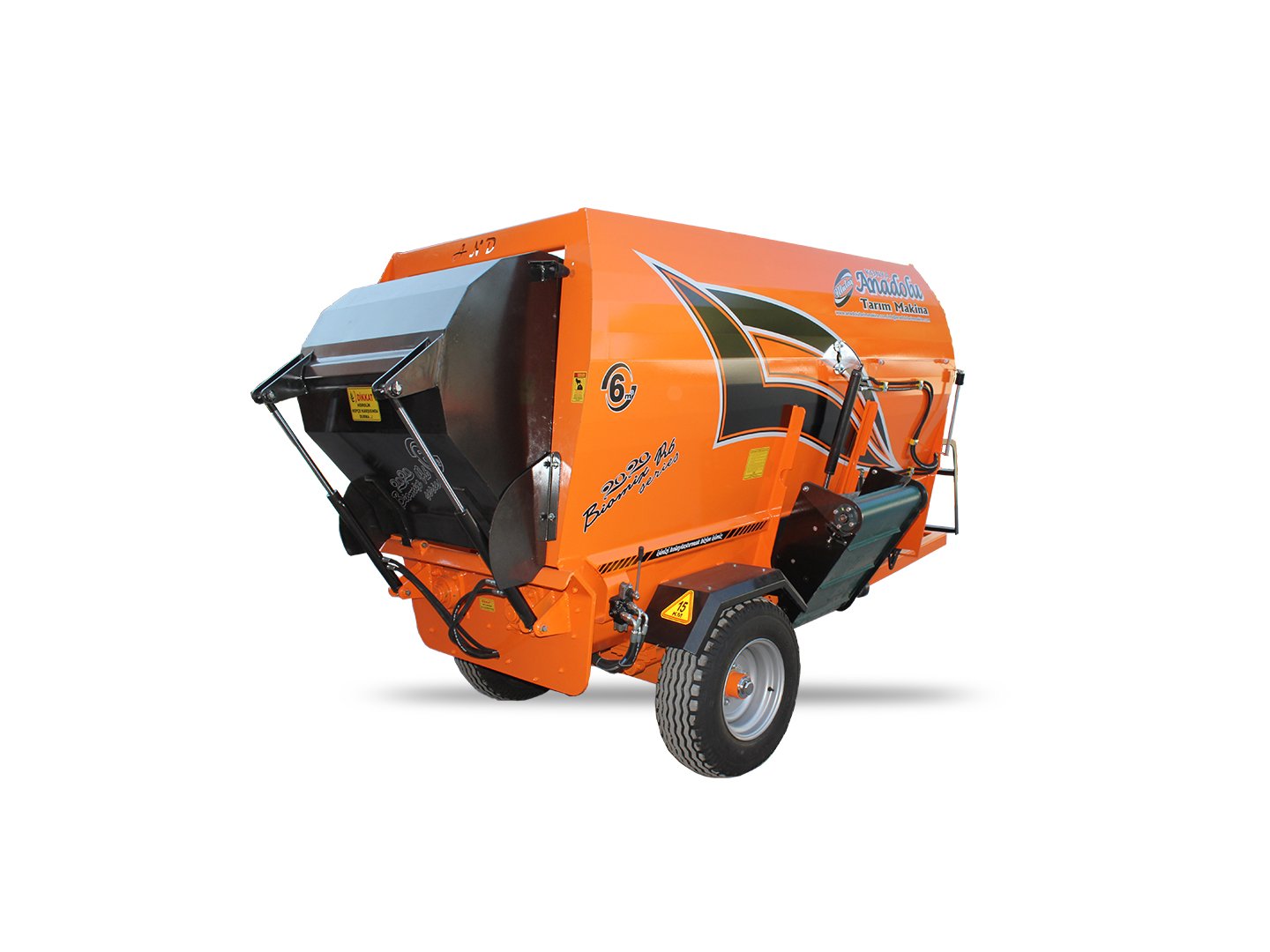

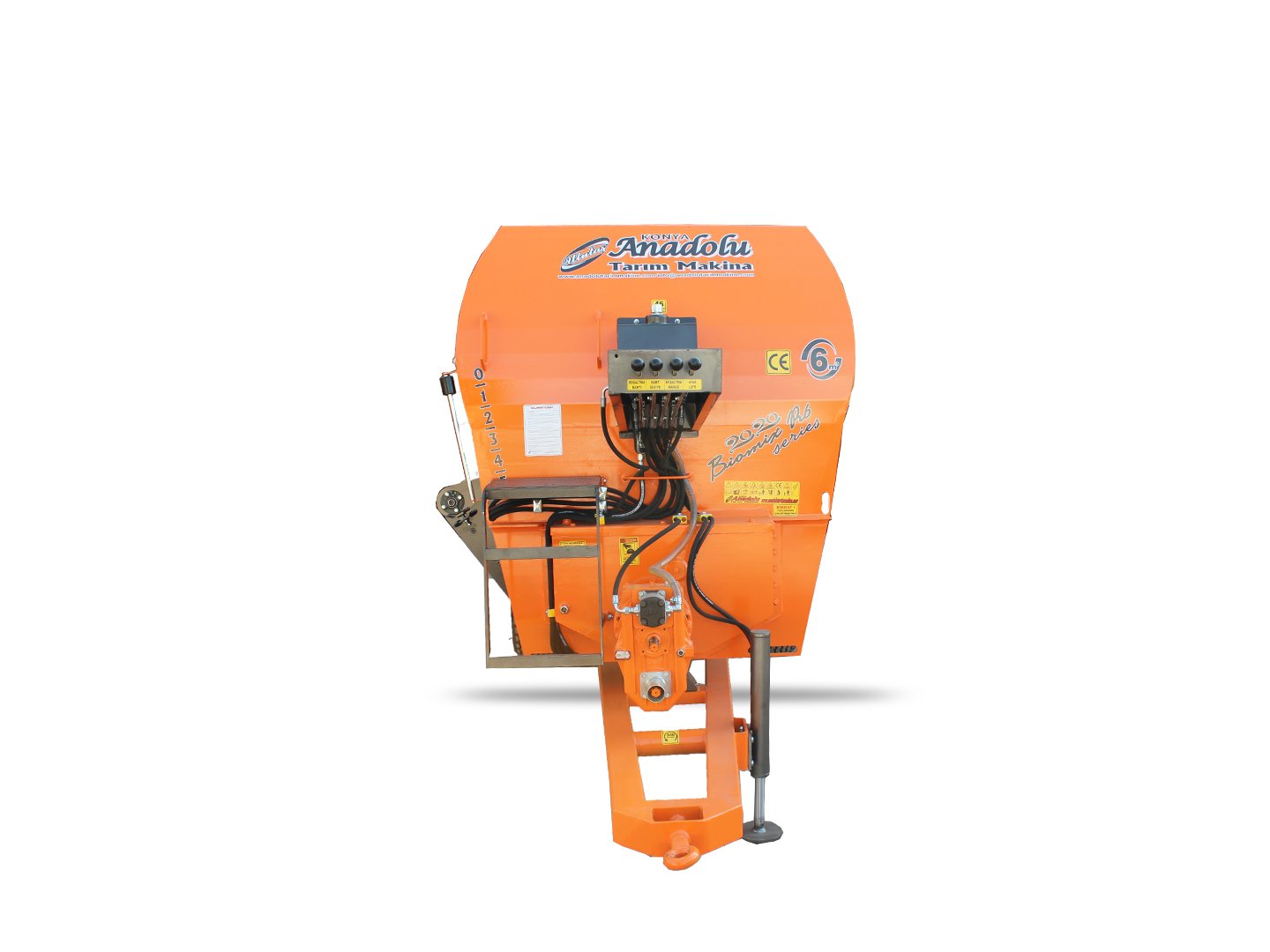

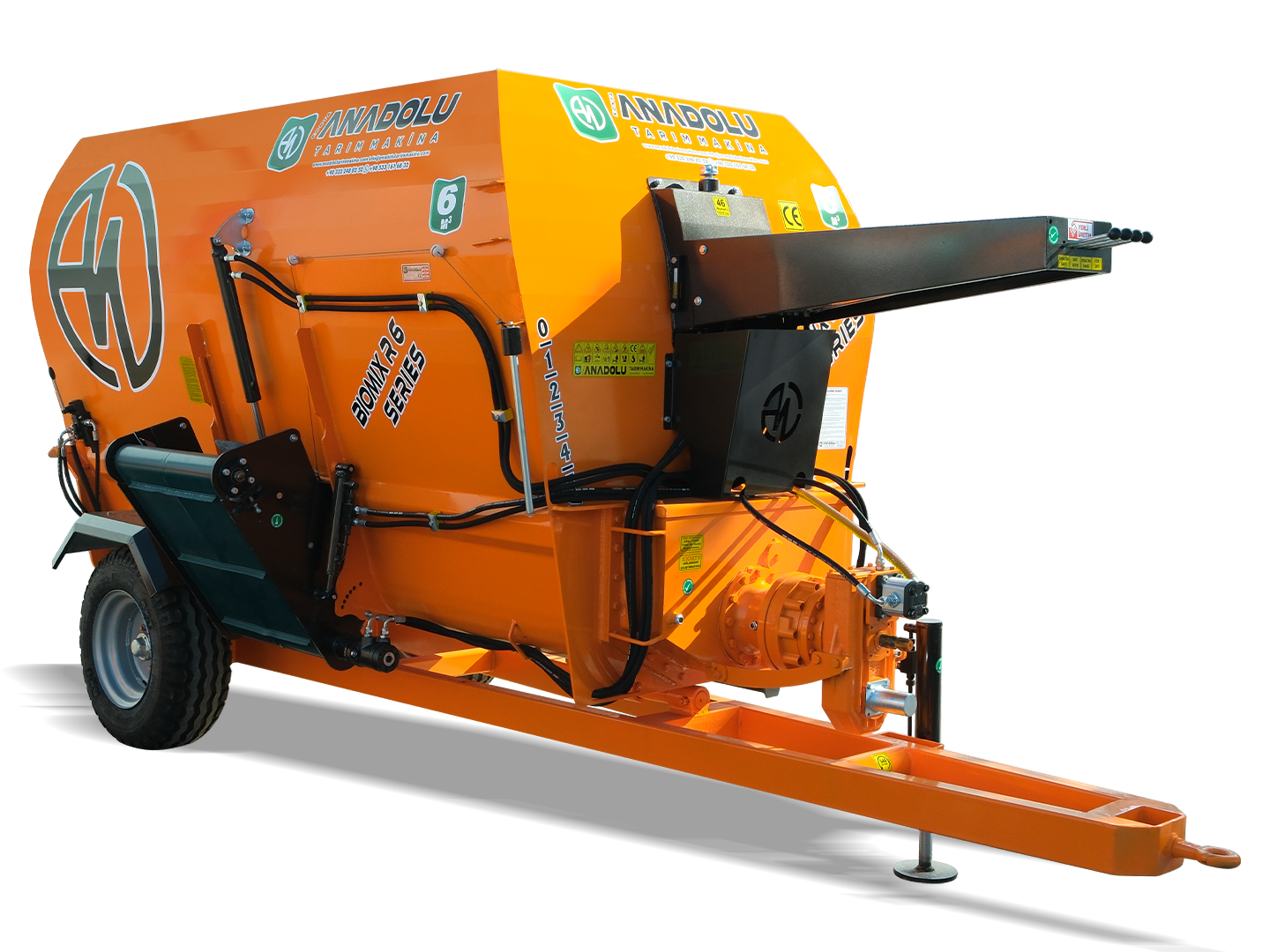

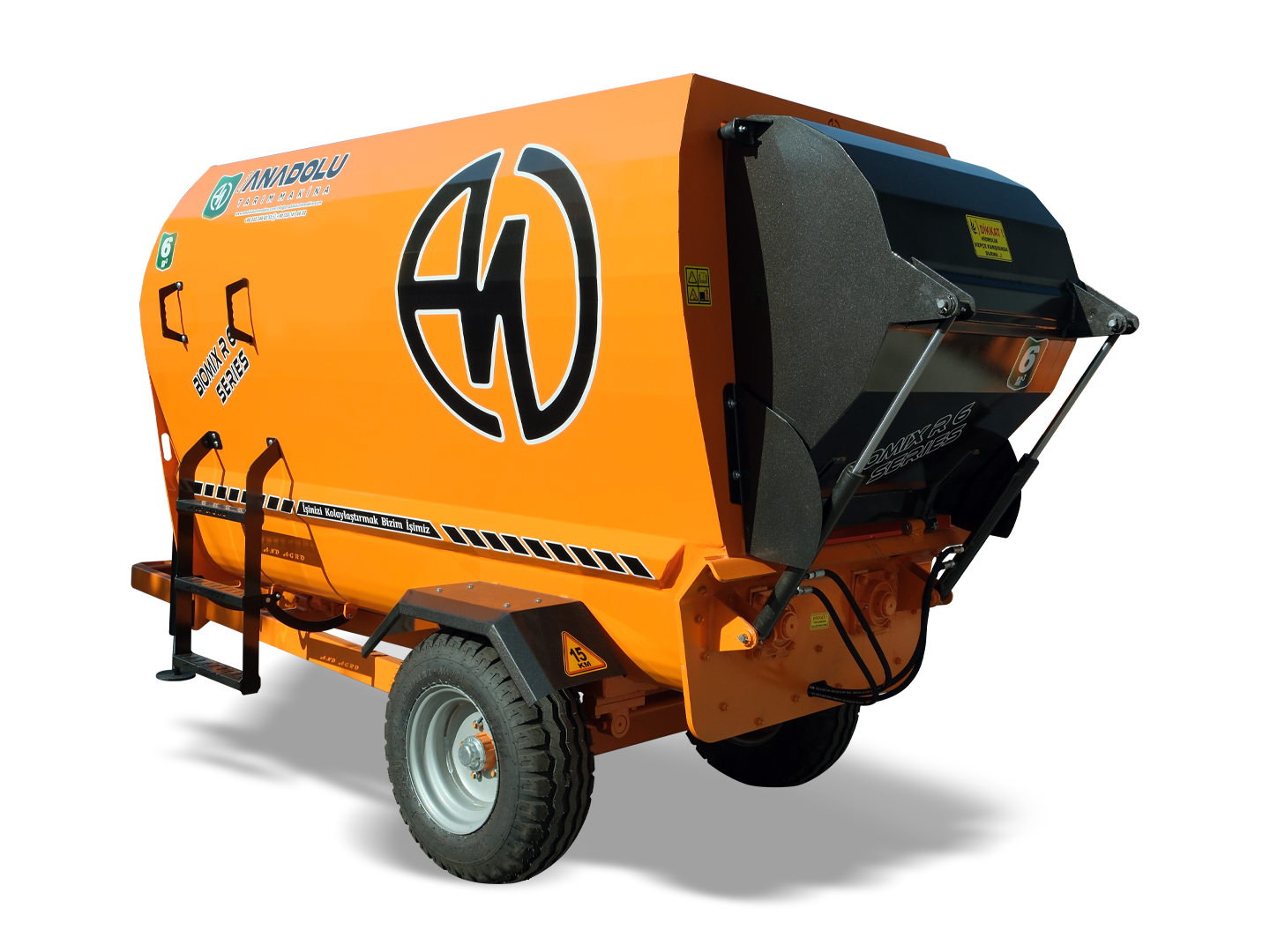

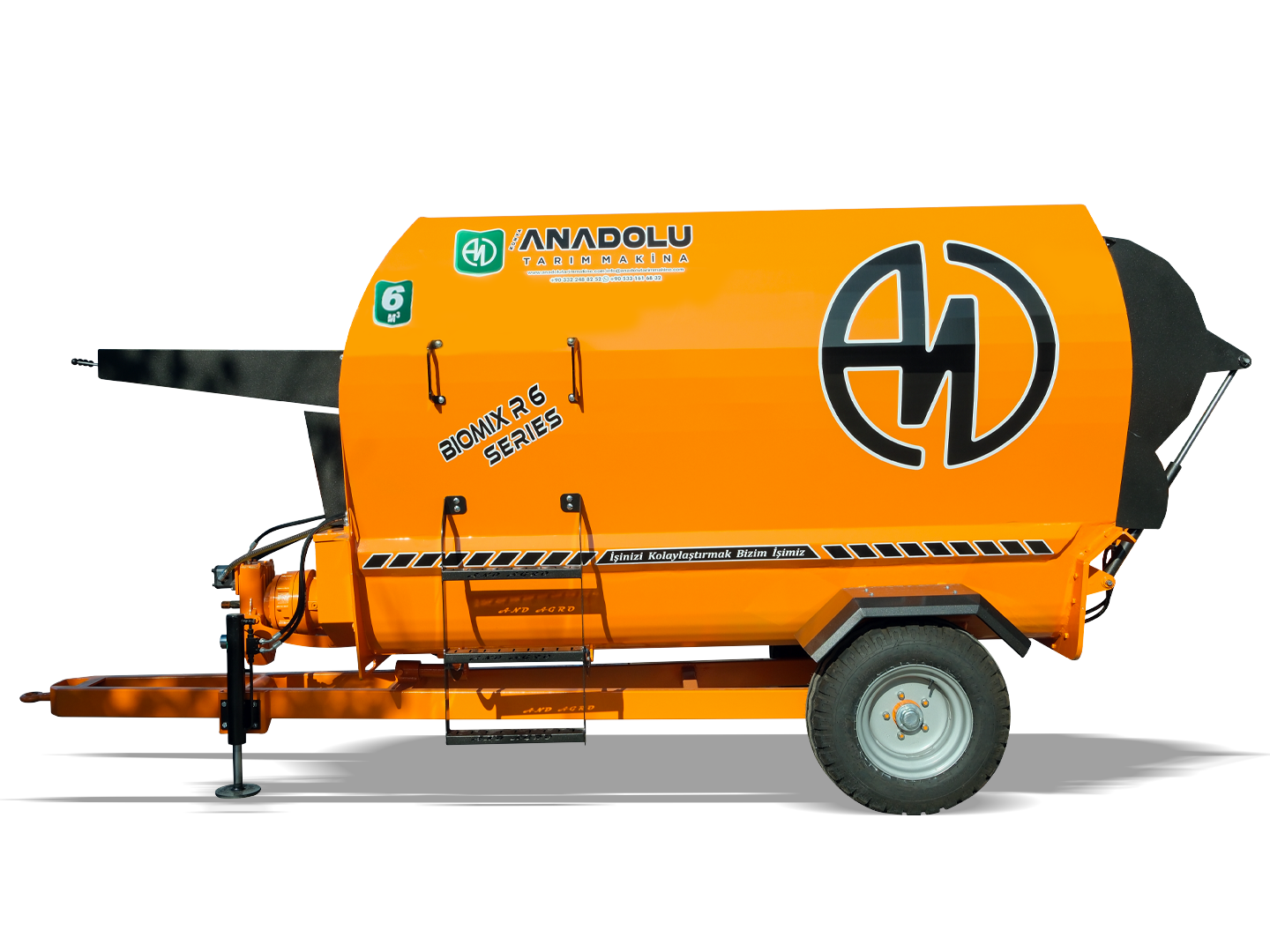

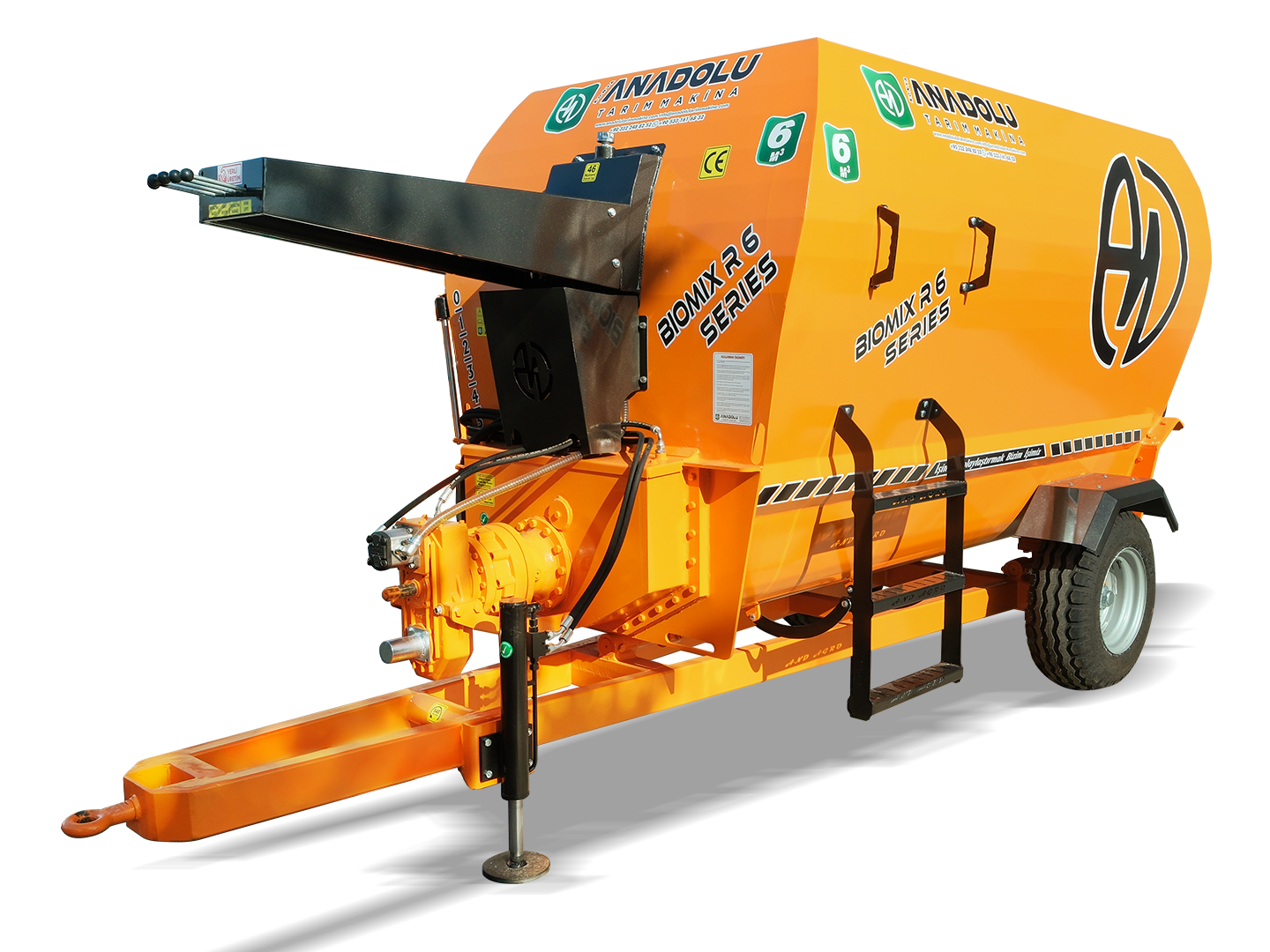

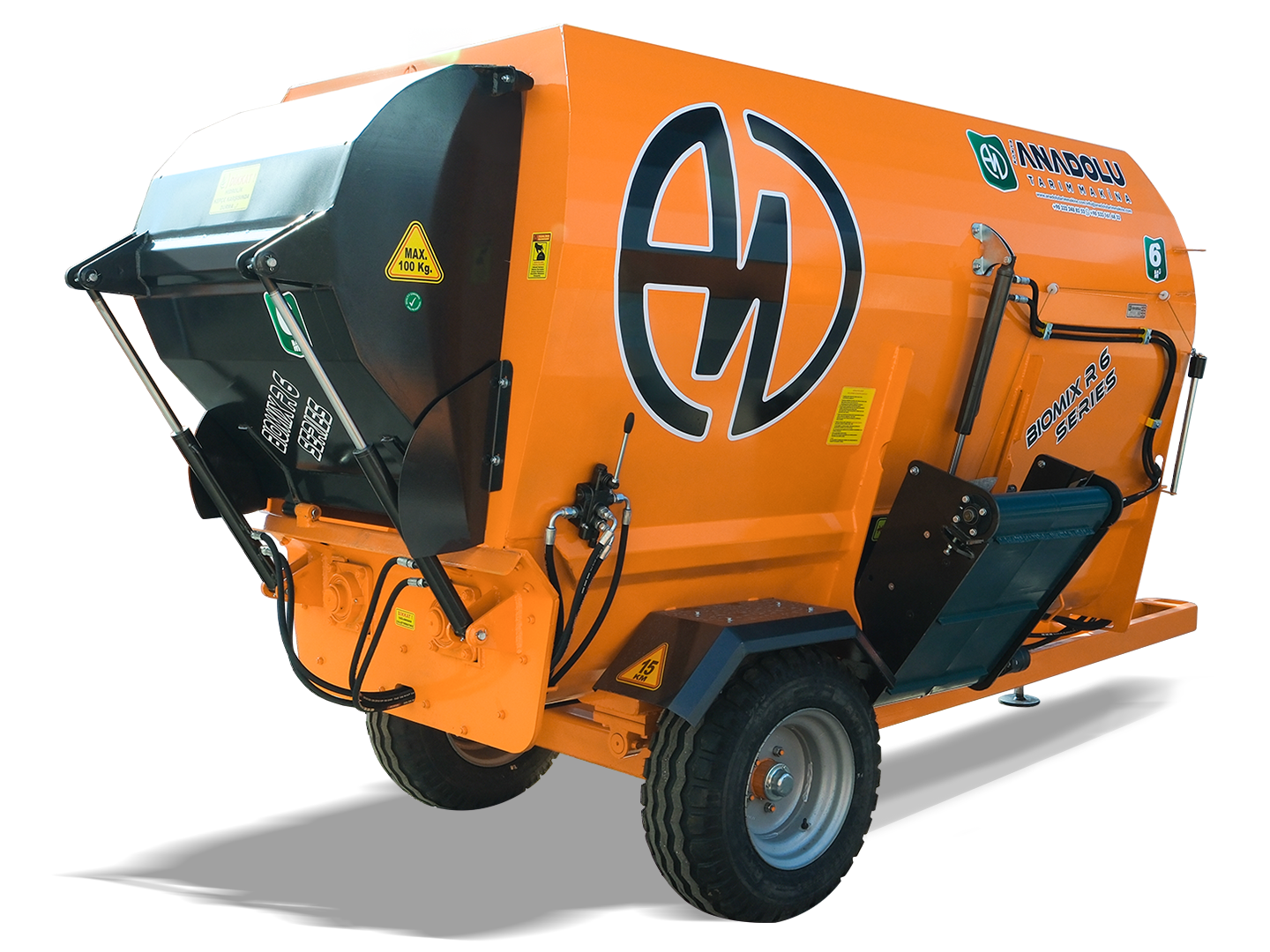

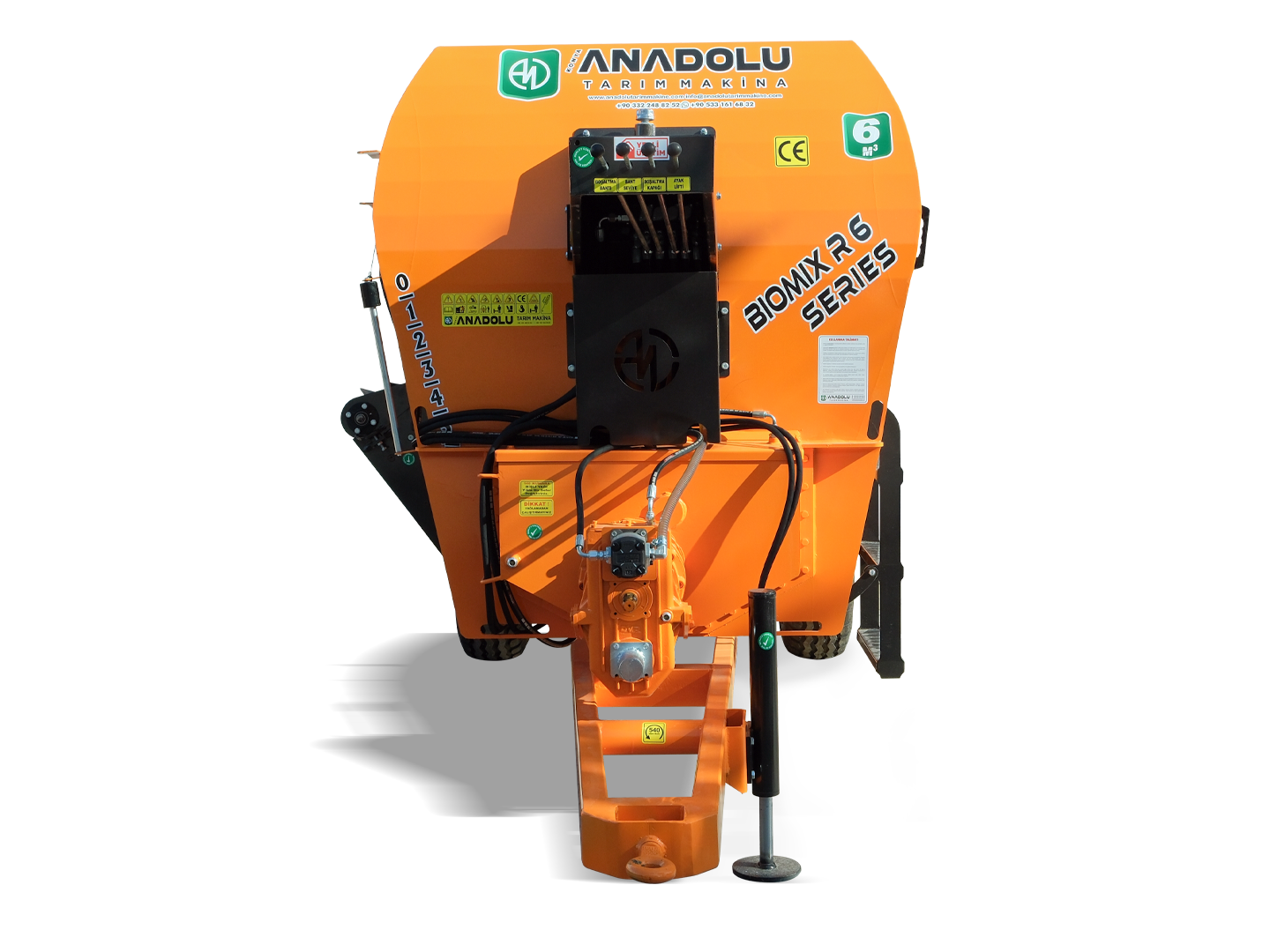

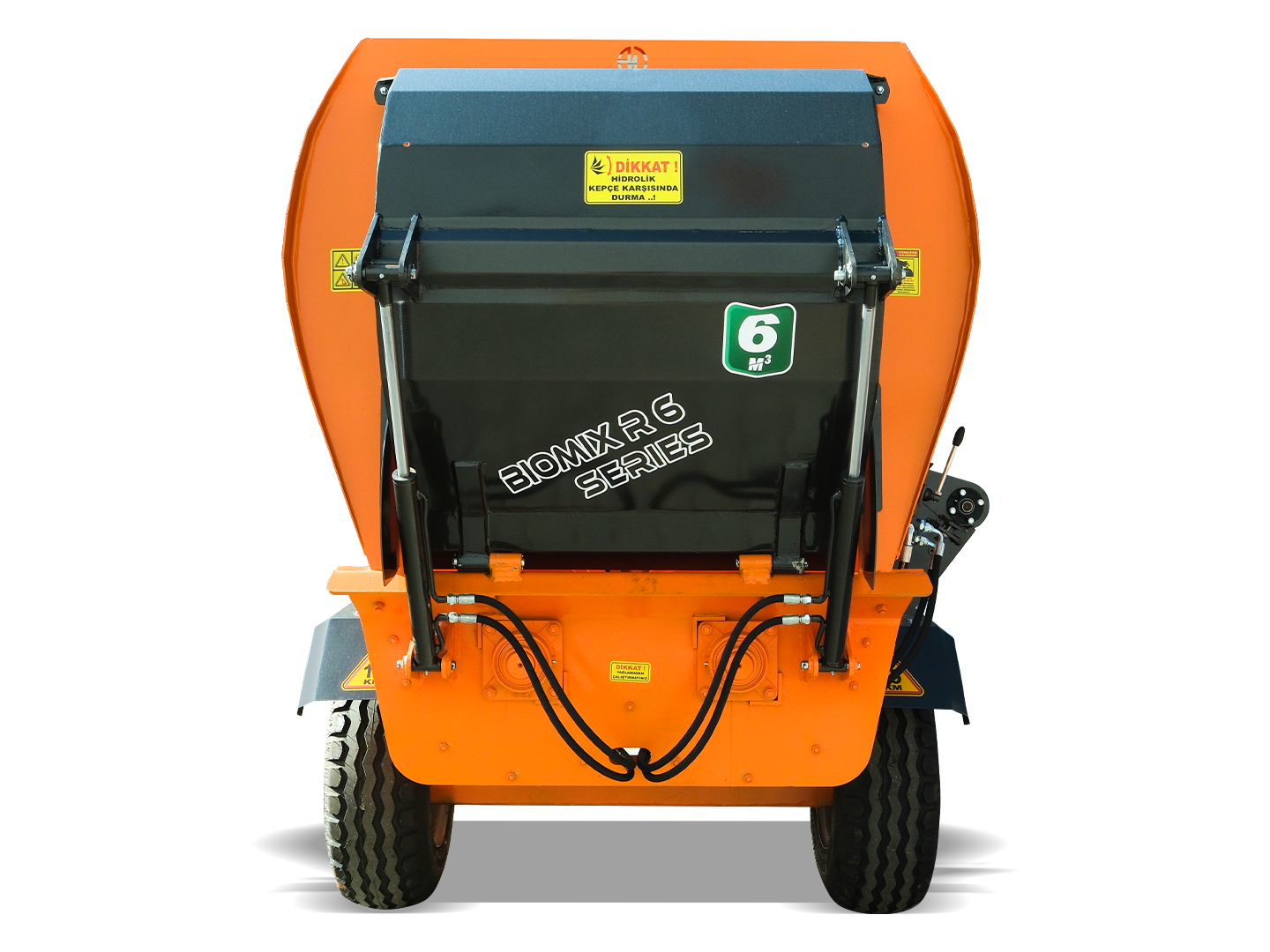

6 m³ horizontal feed mixer and distribution trailers have two horizontally designed augers.

6 m³ horizontal feed mixer and distribution trailers have two horizontally designed augers. The auger system has been developed and developed with the latest technology and experience. With this designed helix system, you can increase the homogeneity to 95%, and at the same time, you can minimize the particle size thanks to the chopper blades made of special design and special materials. 6 m³ feed mixer and distribution trailer can prepare feed for 100 to 110 cattle and 400 to 500 small cattle. Horizontal feed mixer and distribution trailers can be produced in desired sizes and features with tractor, electric and electric / tractor depending on demand.

POWER SOURCE TRACTOR
LENGTH (A) (mm) 4800
HEIGHT (B) (mm) 2250 mm
BANDED WIDTH (D) (mm) 2150 mm
BANDLESS WIDTH (D1) (mm) 2000 mm
WHEEL TRACK WIDTH (D2) (mm) 2000 mm
CURRENT WEIGHT (KG) 2120 kg
POWER REQUIREMENT (PTO) 55 hp
PTO SPEED 540 D/dk
WHEEL DIMENSIONS 10,00/75-15,3
NUMBER OF BLADES 68
SCREW SYSTEM HORIZONTAL DOUBLE
WEIGHING SYSTEM OPTIONAL
FEED DISCHARGE DIRECTION SINGLE RIGHT
TRACTOR SEPARATOR SYSTEM HYDRAULIC JACK
REAR LOADER BUCKET AVAILABLE
TRANSMISSION PTO OUTPUTS COUPLE
BASE SHEET THICKNESS (mm) 10
SIDE SHEET THICKNESS (mm) 5
DISCHARGE TAPE AVAILABLE
HYDRAULIC DRAIN COVER AVAILABLE
DRAWING AND WHEEL SYSTEM AVAILABLE
NUMBER OF ANIMALS 110
