5 m³

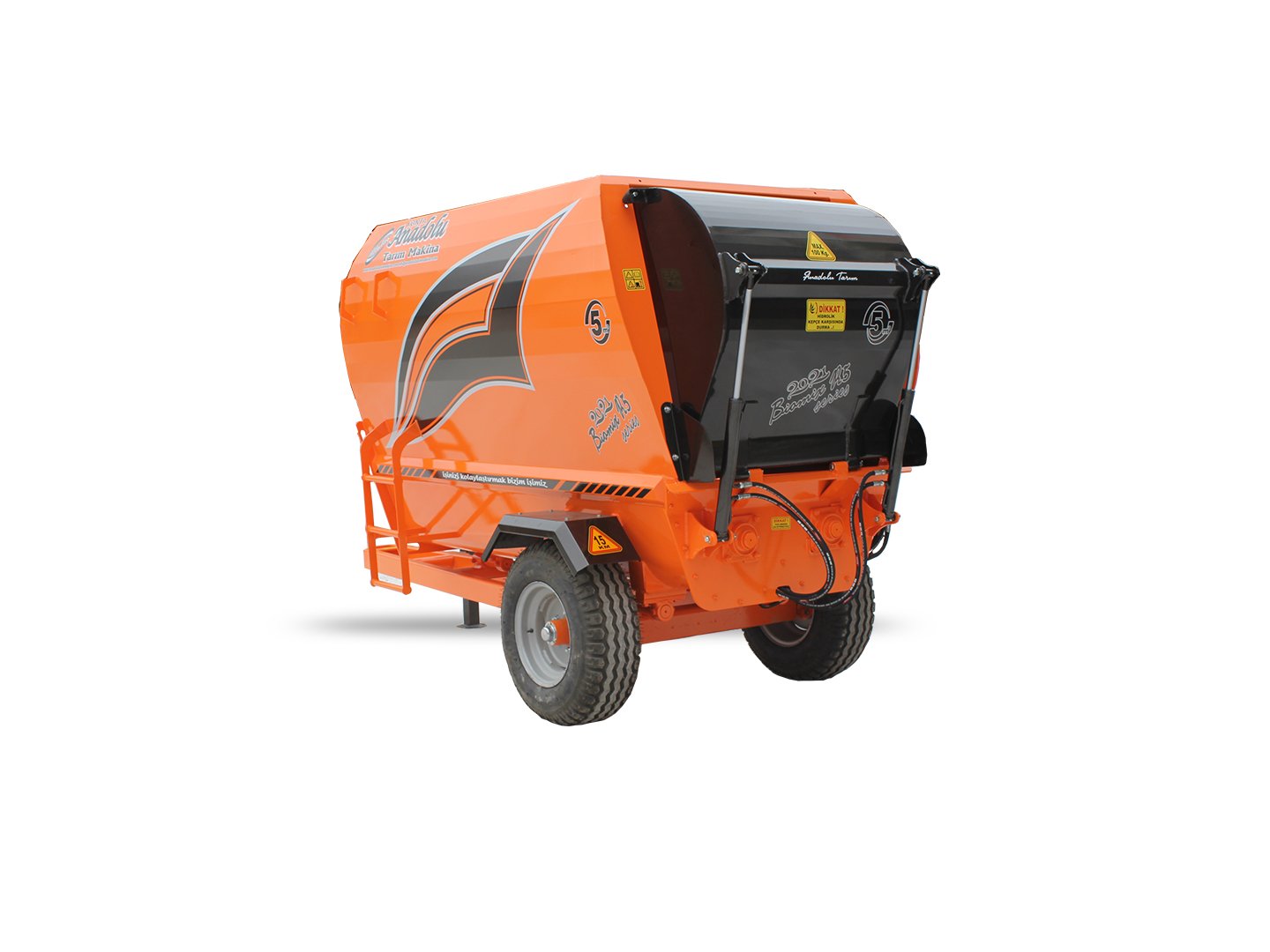

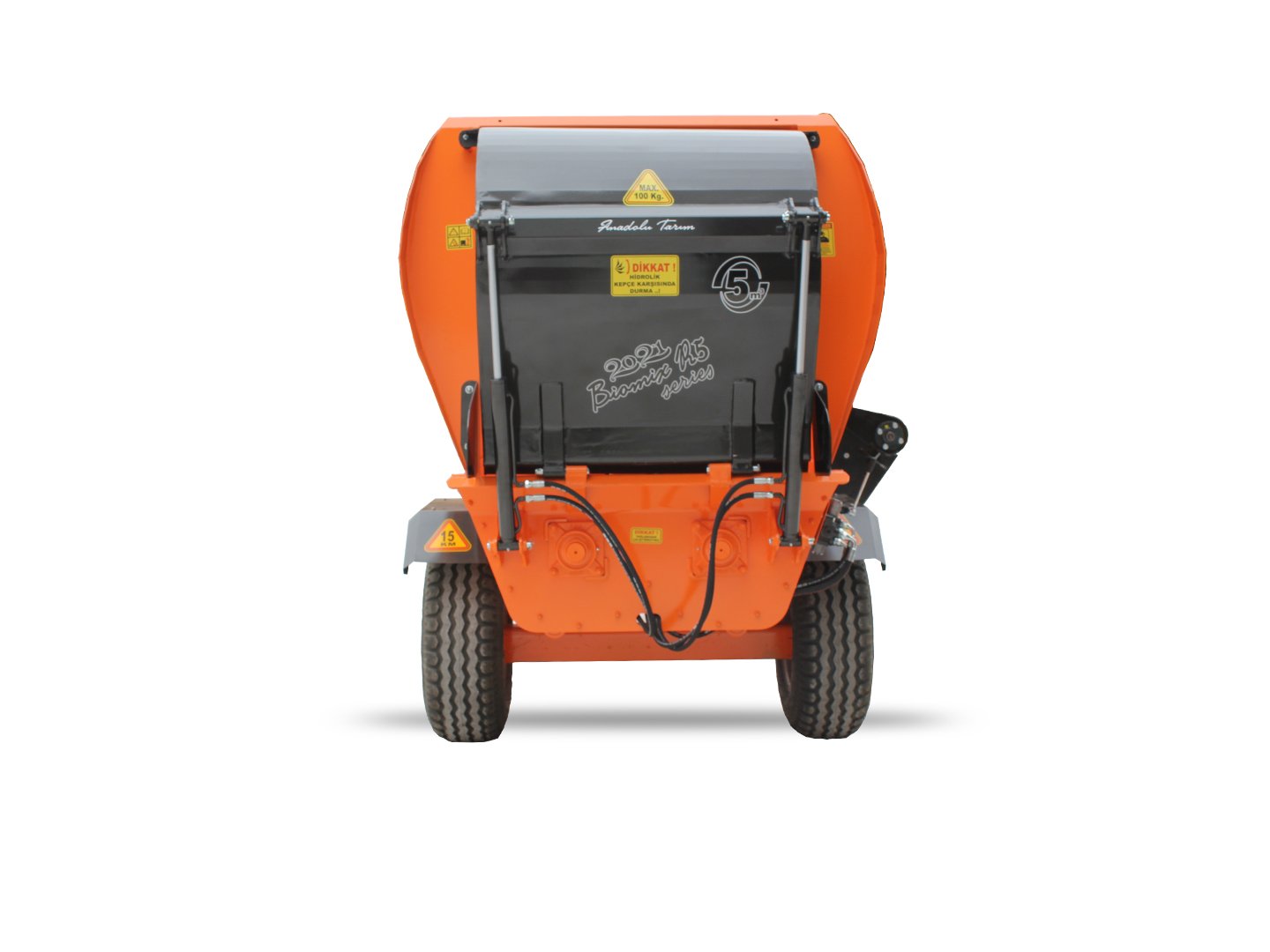

5 m³ horizontal feed mixer and distribution trailers have two horizontally designed augers.

5 m³ horizontal feed mixer and distribution trailers have two horizontally designed augers. The auger system has been developed and developed with the latest technology and experience. With this designed helix system, you can increase the homogeneity to 95%, and at the same time, you can minimize the particle size thanks to the chopper blades made of special design and special materials. 5 m³ feed mixer and distribution trailer can prepare feed for 70 to 85 cattle and 300 to 400 small cattle. Horizontal feed mixer and distribution trailers can be produced in desired sizes and features with tractor, electric and electric / tractor depending on demand.

POWER SOURCE TRACTOR
LENGTH (A) (mm) 445
HEIGHT (B) (mm) 2200
BANDED WIDTH (D) (mm 2150
BANDLESS WIDTH (D1) (mm) 2000
WHEEL TRACK WIDTH (D2) (mm) 2000
CURRENT WEIGHT (KG) 1950
POWER REQUIREMENT (PTO) 50 hp
PTO SPEED 540 D/dk
WHEEL DIMENSIONS 10,00/75-15,3
NUMBER OF BLADES 52
SCREW SYSTEM HORIZONTAL DOUBLE
WEIGHING SYSTEM OPTIONAL
FEED DISCHARGE DIRECTION SINGLE RIGHT
TRACTOR SEPARATOR SYSTEM MANUAL JACK
REAR LOADER BUCKET THERE IS
TRANSMISSION PTO OUTPUTS COUPLE
BASE SHEET THICKNESS (mm) 8
SIDE SHEET THICKNESS (mm) 4
DISCHARGE TAPE AVAILABLE
HYDRAULIC DRAIN COVER AVAILABLE
DRAWING AND WHEEL SYSTEM AVAILABLE
NUMBER OF ANIMALS 85
